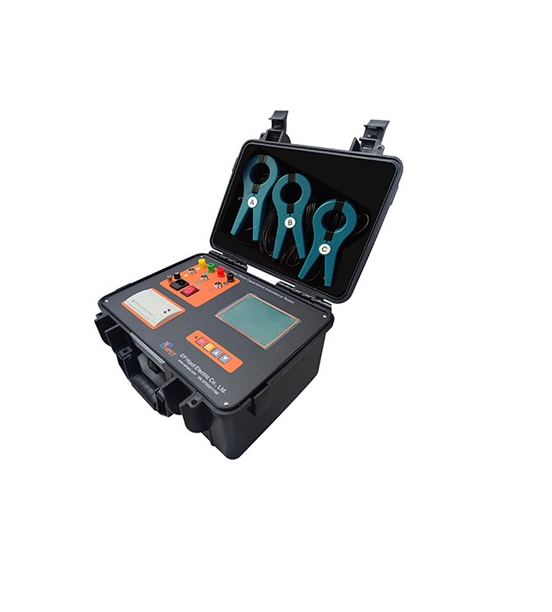

EPHIPOT EPDG-H Three Phase Capacitance Inductance Tester RLC (0.1μF ～ 3,300μF)

- Capacitance:

Measurable capacitance range: 0. 1μF ～ 3,300μF

Measurable capacity range: 5 20,000kvar

Measurement accuracy: ±(1.0% readings +0.02μF

Resolution: 0.001μF

- Current:

Current measurement range: 20A

Measurement accuracy: ±(3.0% readings +0.05A

Resolution: 0.01A

- Inductance:

Inductance measurement range:

Small inductance mode 0.1mH～5mH

Large inductance mode 5 mH～50H

Inductive reactance measurement range: 50mΩ~20KΩ

Measurement accuracy: ±(3.0% readings +0.05mH)

Resolution: 0.01mH

- Resistance measurement:

Resistance measurement range:

Small resistance mode 50mΩ～1Ω

Large resistance mode 1Ω～20KΩ

Measurement accuracy: ±(3.0% readings +0.05Ω)

Resolution: 0.01 Ω

- Power supply:

Rated voltage: power frequency 220V±10%

Rated frequency: 50Hz

Rated output: 2V/20V/500VA

- Working condition:

Environmental temperature: -10℃ ~ +50℃

Relative humidity: ≤90%

- Weight: 370×260×220 mm / 15 kg

General Information:

Automatic capacitance inductance tester is specially developed for problems existing in substation field measurement of capacitance value of capacitor, it solved the following problems:

(1) Field measurement capacitor needs dismantling cables, not only the big workload but also easy to damage the capacitor.

(2) Low capacitance meter output voltage causes the fault detection rate is low.

The instrument has characteristics of small measured workload, fast and simple, stable performance, high measurement accuracy, high fault detection, etc.

(3) Reactor inductance measurement.
