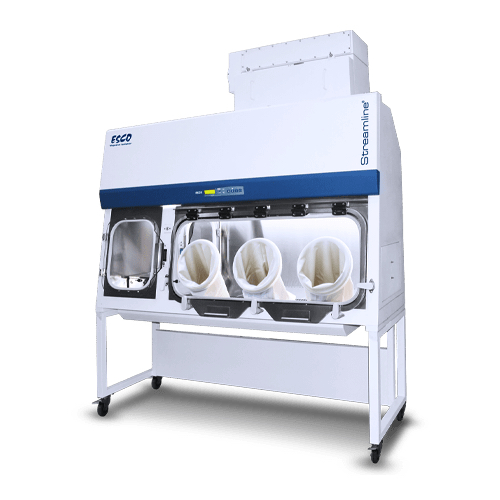

Main Chamber Nominal Size (Width): 1.6 meters
External Dimension (L x W x H): 1645 x 823 x 2516 mm
Main Chamber Work Zone (W x D x H): 965 x 621 x 614 mm
Pass Through (W x D x H): 453 x 621 x 614 mm
Work Zone and Interchange Chamber Performance: ISO Class 3 (at rest), ISO Class 5 (in operation)
Downflow and Exhaust Filter Type: H14 filters with integral metal guards and filter frame gaskets; fully compliant with EN 1822 (H14) and IEST-RP-CC001.3 requirements (each cabinet has individual downflow and exhaust filters)
Typical Filter Efficiency: >99.999% for particle size between 0.1 to 0.3 micron
Fluorescent Lamp Intensity: ≥ 800 lux
Isolator Construction:
Main Body: EG Steel 1.5 mm (0.06”) 16 Gauge Electro-Galvanized Steel with White Oven-Baked Epoxy-Polyester Isocide Antimicrobial Powder Coated Finish
Main Body: Stainless Steel 1.5 mm (0.06”) 16 gauge stainless steel, type 304, with 4B finish
Work Tray: 1.5 mm (0.06”) 16 gauge stainless steel, type 316L, with 4B finish
Side Walls: 1.5 mm (0.06”) 16 gauge stainless steel, type 316L, with 4B finish
Electrical: 220-240V, AC, 50/60Hz, 1Ø
Cabinet Full Load Amp (FLA): 4.5 A
Optional Outlets FLA: 5.0 A
Cabinet Nominal Power: 440 W
Maximum Power: 700 W
Cabinet BTU: 1501 W
Net Weight: 490 kg
