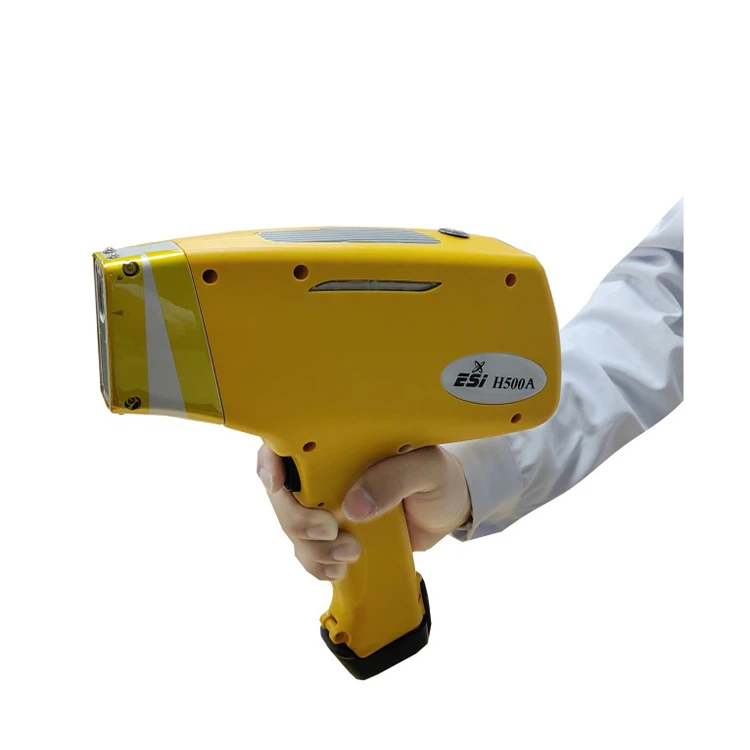

ESi H500A Brass XRF Analyzer

Analytical Methods: Dispersed X-ray fluorescence energy

PDA with touch screen

CPU: 2G, System Memory: 8G

Intelligent analytics

Automatic selection of test mode based on sample matrix

Source of stimulation: 50kV/200

Collimator & Filter: Multiple community sets and filters with automatic switching function

Detector: High Resolution Silicon Detector

Sample Status: Solids, liquids, powders

Detection limits: 5 500ppm, depending on element and sample matrix

Analysis Time: 3-60 seconds

Simultaneous analysis: Display up to 40 elements at once

Range Display: ppm - 99.99%

Safety: Automatic shutdown of the X-ray tube, PB lined instrument frame, radiation level in international safety standards

Power Supply: The rechargeable Li battery, standard 6800mAh, provides up to 12 hours of operation on a single charge; 110/220V Global Adapter for Charging

Temperature: -20 ºC to +50 ºC

Size: 235 mm x 82 mm x 260 mm

Weight: Devices without batteries: 1. 35 kg, tools with batteries: 1. 49 kg

The handheld alloy metal analyzer you have, can be done anywhere:

Simultaneous analysis of sulfur and chlorine

Compact, portable XRF technology

Vacuum-based system for enhanced performance
