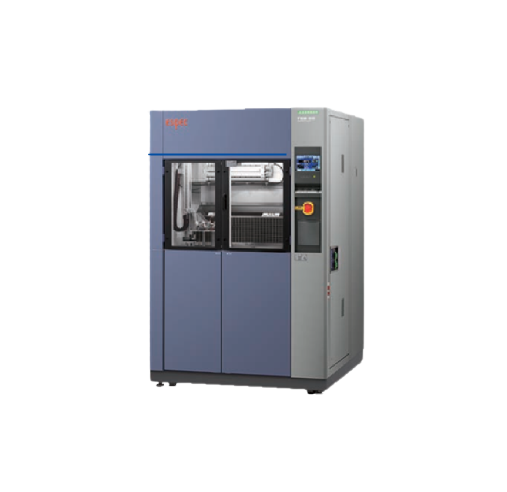

System: 2-chamber system perform transfer of basket
Brine: Single-fluid or dual-fluid fluorine deactivated brine
Utility requirement:
Power supply: 380V AC 3φ 50Hz: 23 A
400V AC 3φ 50Hz: 23 A
Ambient temperature: 0 to ＋40℃
Required air-flow quantity: 15L/ min. (ANR)〈3.6L/ cycle (ANR)〉
Performance:
Hot bath:
Temp. range: ＋70 to ＋200℃ (＋158 to ＋392℉)
Temp. heat-up rate: Ambient temp. → +150℃: within 90 min.
Temp. pull-down rate: ＋150 → ＋ 60℃ Within 100 min.
Cold bath:
Temp. range: −65 → 0℃ (−85 to ＋32℉)
Temp. heat-up rate: − 65 → 0℃ Within 65 min.
Temp. pull-down rate: Ambient temp. → − 65℃ Within 90 min.
Test area:
Specimen basket dimensions: W150×H150×D200mm (Approx. 4.5 L)
Inside bath dimensions: W290×H350×D520mm (Approx. 52 L)
Specimen basket load capacity: 2.0kg
Outside dimensions: W1200×H1785×D1320mm
Chamber (overall) weight: Approx. 790 kg
INCLUDED ACCESSORIES:
● Specimen basket
(18-8 Cr-Ni stainless steel #5 mesh basket)
TSB-22 (W120×H150×D120mm／Approx. 1.0kg): 1
TSB-52 (W150×H150×D200mm／Approx. 2.0kg): 1
● Specimen basket cover: 1 set
● Cartridge fuse (5 A): 1
● Fluid drain hose:
Inner dia.: 12 mm: 2
Inner dia.: 8 mm: 1
● Funnel for fluid supply: 1
● Fluid injection pipe (with rubber cork): 1
● Connector (Terminal for temperature recorder): 1
● Shutter open attachment: 2
●Water absorption mat: 1
● Thermocouple: 1
● Operation manual (CD): 1
