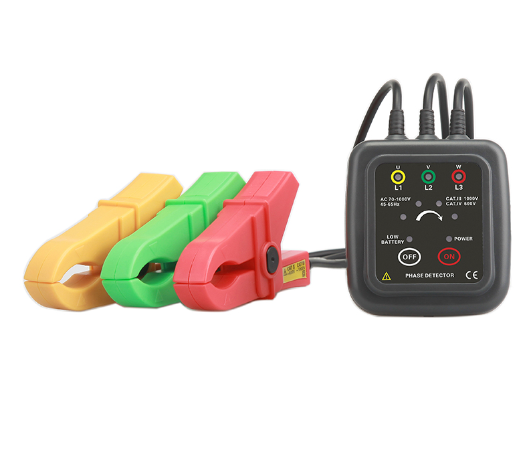

Power Supply: DC 3V 5 alkaline batteries (LR6)X2PCS
Live Power Range: AC70-1000V,45-65Hz(Sine Wave Continuous Input)
Available Clamp Wire Size: external diameter ø10mm～ø40mm
LED Display
[Positive phase sequence] The phase detector lamp lights up clockwise
[Negative phase sequence] The phase detector lamp lights up counterclockwise
[Live power] L1, L2, L3 lamps light up in setting voltage range
[Default phase] L1 or L2, or L3 lamp is not lighting
[Open circuit] L1 or L2, or L3 lamp is not lighting
Buzzer
[Positive phase sequence] the buzzer sounds intermittently
[Negative phase sequence] the buzzer sounds continuously
Battery Check: The POWER indication lamp light up after boot up; the LOW BATTERY lamp lightup when low battery
Auto Shutdown: 5 minutes after booting up, the meter automatically shutdown
Clamp Lead Length: 0.6m
Meter Size: 70mmX75mmX30mm
Weight: The instrument: 260g (include battery); the total weight: 0.36kg (including accessories)
Max Measure Voltage: AC 1000V
Insulation Strength: 5.4kV/rms
Maximum Rated Power: 300mVA
Suitable Safety Standaerd: EN61010-1:2001, EN61010-031:2002, pollution level 2, CAT Ⅲ1000V, instantaneous overvoltage 6000V
Working Temperature & Humidity: -10℃～55℃; below 80%RH
Store Temperature & Humidity: -20℃～60℃; below 90%RH
