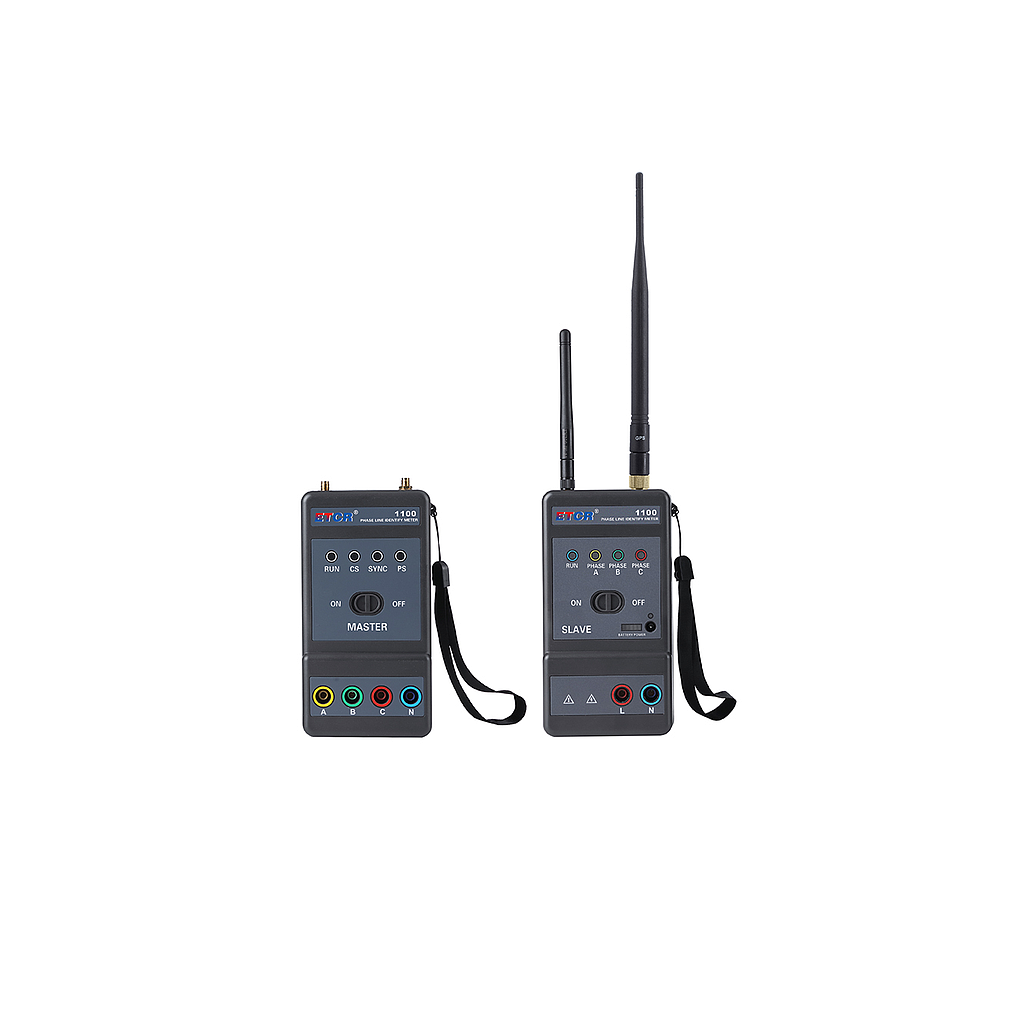

ETCR ETCR1100 Transformer Region Phase Line Identify Meter

Power Supply: Host: 380V/220V; slave: DC 7.4V 2.6Ah rechargeable lithium battery

Power Consumption Of The Instrument: 3W

Transmission Power: 1W

Communication Distance: 8km

Antenna:

Host: FR suction cup antenna, BD/GPS planar antenna

Slave: FR glue stick antenna, BD/GPS glue stick antenna

Rated Voltage: Three phase four wire: 3x220/380V

Frequency: 50Hz

Recognition Time: ≤5 seconds

One-time Recognition Success Rate: >99%

Host (Slave) Size: 162mm×85mm×49mm

Weight: Host: about 235g; slave: about 320g; total weight: about 2.56kg (include accessory)

Host Test Line: (Crocodile clip + elastic stick plug) cable length 6m

Slave Test Line: (Meter pen + elastic stick plug) cable length 1.5m

Storage Temperature & Humidity: -10℃~60℃; Below 70%RH

Insulation Strength: AC 3700V/rms(between the circuit board and housing)

Working Temperature & Humidity: -10℃~40℃; Below 80%RH
