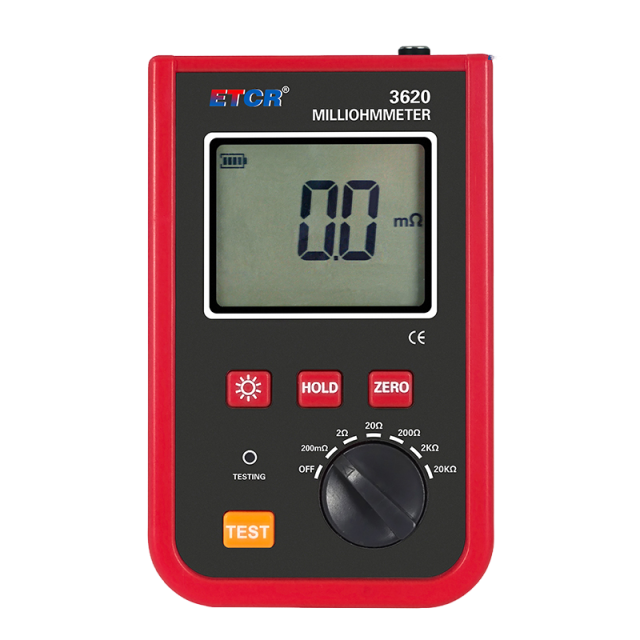

ETCR ETCR3620 Portable Milliohmmeter (1mΩ~20kΩ)

Measurement Gear & Accuracy

Gear/Accuracy/Resolution/Test Current

200mΩ/±0.1%FS±15dgt/0.1mΩ/1.2A

2Ω/±0.1%FS±15dgt /1mΩ/510mA

20Ω/±0.1%FS±15dgt/0.01Ω/210mA

200Ω/±0.1%FS±15dgt /0.1Ω/210mA

2kΩ/±0.1%FS±15dgt/1Ω/21mA

20kΩ/±0.1%FS±15dgt/10Ω/2.1mA

Technical Specification

Power Supply: DC 7.4V 2600mAh rechargeable lithium battery

Range: 1mΩ~20.0k

Detection Method: Precision 4-wire method, AC/DC 2 channel simultaneous detection

Data Storage: 200 groups (power down or replace the battery will not lose the data)

Test Line: 2 sets: Red/Black each 1 set, length 0.8m

Backlight Function: Yes, suitable to the dark site

Inspection Function: Yes

Display Mode: Display area: 58.5mmX46mm

Low Voltage Indicator: When low battery voltage symbol display, remind to charge in time

Host Size: 159mmX100mmX66mm

Weight: Meter: about 460g; Total weight: about 640g( include accessories)

Working Temperature: -10℃~40℃; below 80%RH

Store Temperature: -10℃~60℃; below 70%RH

Withstand Voltage: AC 3700V/rms(between housing and screws)

Accessories: Meter: 1PCS; Test Line: 1 set; Charger:1PCS; Cloth Bag: 1PCS
