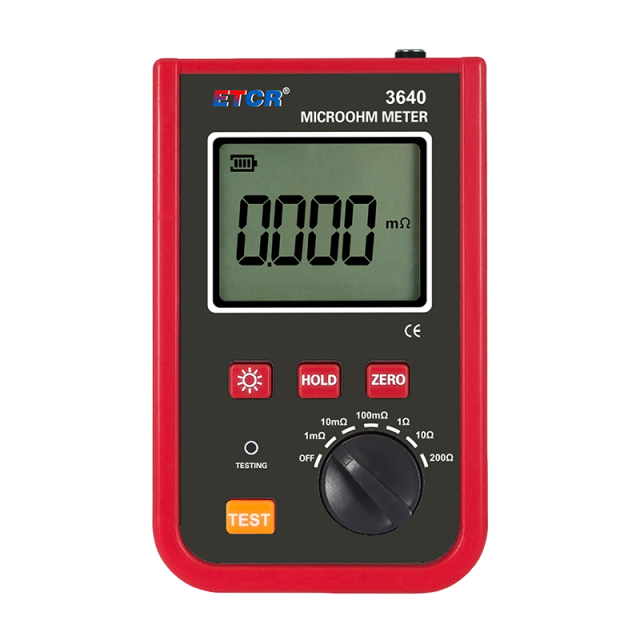

ETCR ETCR3640 Portable Micro-Ohmmeter (5A, 1uΩ~200Ω)

Measurement Gear & Accuracy

Gear/Accuracy/Resolution/Test Current

1mΩ/±0.1%FS±10dgt/1uΩ/≤ 5A

10mΩ/±0.1%FS±10dgt /10uΩ/≤ 4A

100mΩ/±0.1%FS±10dgt/0.1mΩ/≤ 2A

1Ω/±0.1%FS±10dgt /1mΩ/≤ 1A

10Ω/±0.1%FS±10dgt/0.01Ω/≤ 100mA

200Ω/±0.1%FS±10dgt/0.1Ω/≤ 10mA

Technical Specification

Power Supply: DC 7.4V 2600mAh rechargeable lithium battery

Range: 1uΩ~200Ω

Detection Method: Precision 4-wire method, AC/DC 2 channel simultaneous detection

Data Storage: 200 groups (power down or replace the battery will not lose the data)

Backlight function: Yes, suitable to the dark site

Test Wire: 2 sets: Red/Black each 1 set, length 0.8m

Backlight Function: Yes, suitable to the dim place

Inspection Function: Yes

Display Mode: Display area: 58.5mmX46mm

Low Voltage Indicator: When low battery voltage symbol display, remind to charge in time

Host Meter Dimension: 159mmX100mmX66mm

Weight: Total weight: about 640g( include accessories)

Working Temperature: -10℃~40℃; below 80%RH

Store Temperature: -10℃~60℃; below 70%RH

Withstand Voltage AC 3700V/rms(between housing and screws)

Accessories Meter: 1PCS; Test wires: 1 set; Charger:1PCS; Cloth Bag: 1PCS
