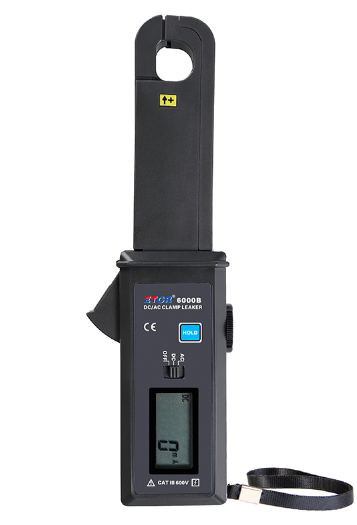

ETCR ETCR6000B DC/AC Clamp Leakage Current Meter (16mm×18mm, 60AAC/DC)

Range: 0mA~60.0A AC/DC

Resolution: 1mA AC/DC

Accuracy: ±2%rdg±5dgt

CT Size: 16mmX18mm

Meter Dimension: 215mmX65mmX34mm

Weight: 220g

Power Supply: Alkaline battery 6LR61 9V, continuous working for 40 hours

Working Current: 10mA

LCD Size: 35mmX21.5mm; display area; 32mmX15mm

Sampling Rate: 2 times/s

Communication Interface: With RS232 interface, storage data can be uploaded to computer save and print.

Communication Parameters: Baud rate: 9600, data bit: 8, stop bit: 1, check bit: NONE

Data Storage: 99 groups, flash display “FULL” symbol indicate storage full

Data Hold: Data hold function: “DH” symbol display

Overflow Display: Exceed measure range overflow function: “OL A” symbol display

Polarity Indication: In DC current test auto identified and display“—” symbol

Auto Shut Down: 5 Minutes after power on, it will power off automatically without any operation to reduce the power consumption.

Battery Voltage: Battery voltage lower than 7.2V will display low battery voltage symbol, and remind to replace battery

Line Voltage: Below 600V circuit test

Shift: Automatically

Accessories: Meter: 1PCS; RS232 communication cable: 1PCS; Software CD: 1COPY; Cloth bag: 1PCS
