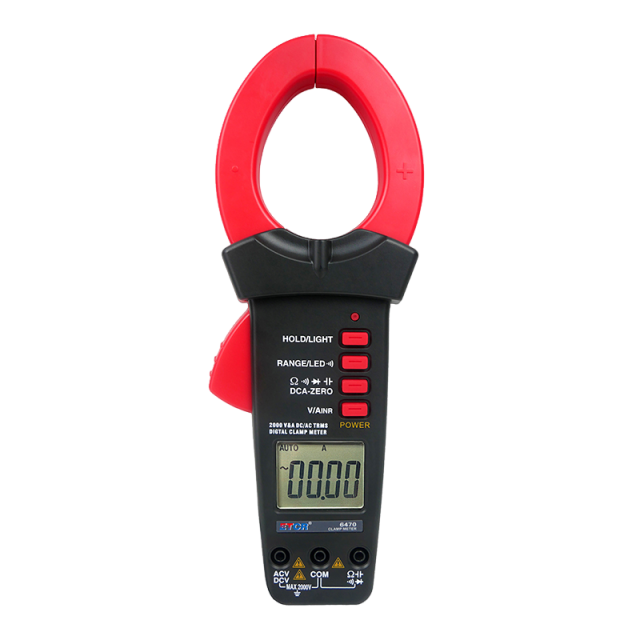

ETCR ETCR6470 Clamp Type Multimeter (Φ55mm, AC/DC 2000V, AC/DC 2000A, 20MΩ, 2000uF)

Power Supply: 9V DC 6F22×1 PCS alkaline dry battery

LCD Size: 45.8mm×39.5mm

DC Voltage:Range: 2V/20V/200V/2000V | ±(0.5%+5)

AC Voltage:Range: 2V/20V/200V/2000V | ±(0.8%+5)

DC CurrentRange: 20A/200A/2000A | ±(1.9%+10)

AC Current:Range: 20A/200A/2000A | ±(1.9%+10)

Resistance:Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(1%+5)

Capacitance:Range: 20uF/200uF/2uF/20uF/200uF/2000uF | ±(3%+10)

Automatic Measurement Range:√

Manual Range: √

AC Conversion Type: True effective value(TRMS)

Overload Protection: √

Automatic Shutdown: √

Diode Test:

DC forward current about 0.5mA

DC reverse voltage about 3.2V

Open circuit voltage about 0.6V

Short Circuit Buzzer: √

Low Voltage lndicator: √

Input Impedance: About 10MΩ

Data Hold: √

Surge Current Measurement: √

Clamp Jaw Size: Can measure max wire diameter Ф55mm

Meter Size: 270x100x46mm

Weight: About 460g (include battery)

Working Temperature: 0℃～40℃ relative humidity <75%

Store Temperature: -10℃～ 50℃ relative humidity <80%
