Power Supply
Host: DC 7.4V 2000mAh rechargeable battery, full charge about 8.4V
Detector: DC 7.4V 2600mAh rechargeable battery, full charge about 8.4V
Test Mode: Clamp CT
Measurement Range: AC 0.000mA~300.0mA (Ture RMS)
Resolution: 1uA
Accuracy: ±1%±5dgt (23℃±5℃, below 80%RH)
Harmonic current: the third harmonic current
Communication Mode: 433MHz wireless communication
Communication Distance: 30m
Display Mode: 3.5 inch color screen; Display area: 71mmX53mm

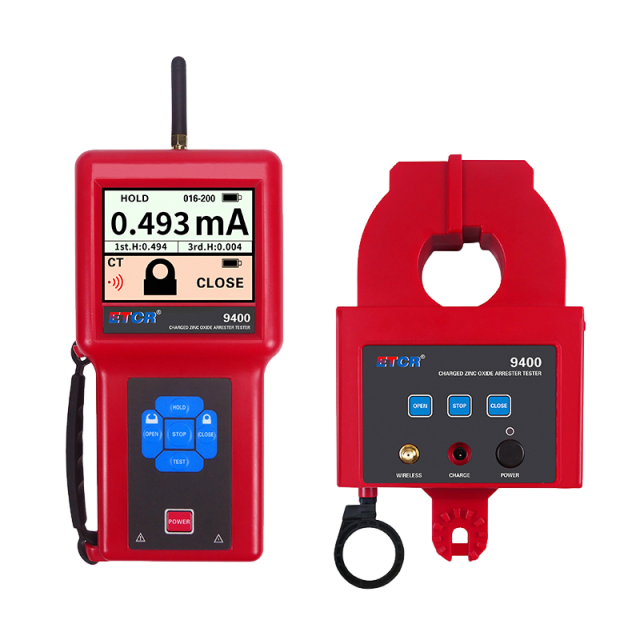

Meter Size:
Master: 195mmX100mmX45mm;
Detector: 208mmX131mmX90mm
Meter Weight:
Master: 400g;
Detector: 1236g;
Total Weight: 7400g (including insulation rod and case)
CT Size: φ40mm
Sampling Rate: 2 times/second
Data Storage: 200 groups,display “HOLD” symbol in storage process
Data Hold: In test mode, press HOLD key to hold data and store data, "HOLD" symbol is displayed, and then press HOLDkey tocancel.
Data Access: “READ”symbol is displayed, can browse all stored data
Overflow Display: Over range overflow function: ”OL” symbol is displayed
Automatic Shutdown: About 10 minutes after power on, the meter shuts down automatically to reduce battery consumption. Battery Voltage: When the battery power is low, the battery voltage low symbol is displayed to remind the meter need to charged
USB Interface: The master equip with USB interface, can upload the stored data to computer
Line Voltage: Below 35kV
Insulation Rod Dimension: 4 section of touch-tone stretch insulation rod (stretch state 5m, closed state 1.5m, rod diameter Φ44mm)
Working Temperature: -20℃~40℃; below 80%RH
Accessories: Master: 1PCS; Detector: 1PCS; Telescopic insulation rod: 1PCS; Emergency pull ring: 1PCS; Charger: 2PCS; USBcommunication cable: 1PCS
