Camera Head
Camera Size: Φ14mm×21mm
Camera Total Length: 125mm
Sensor: 1/4" CMOS
Resolution: 648x488 Pixels
View Angle: 90°
Focus Distance: 6~8cm (approx)
Depth-of-Field: 20cm(approx)
Front Lens: Sapphire glass
Water-Proof: 10m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: Built-in 4×LED(White)
Operating Temperature: -10~50℃/+14~+122℉
Storage Temperature: -20~60℃/+4~+140℉
Cable Wheel
60M fiberglass rod cable
Dia. of push cable: 4.8mm
Material of cable: Fiberglass covered by PP
LCD Monitor
10-inch or 13.1 inch 16:9 super bright HD color LCD screen
Resolution: 1024 × 600 pixels
Mirror and Flip: supports image mirroring and flipping
Video Resolution: AHD 1080P
Audio Recording: local sound recording with built-in speaker
Output: TV and audio output
On-screen date and time display
On-screen meter/ft distance display (optional)
Supports SD card and U-disk for convenient recording
All functions accessible via keyboard, offering notebook-like convenience
Play audio and adjust volume while recording or reviewing videos
Auxiliary Wi-Fi photo capture function for easy snapshots and instant sharing.
20x zoom for clear inspection, both close-up and wide view
Multi-language support: Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese
Battery Supply
Removable Battery Pack
Type: Li-ion 18650
Voltage: 7.4V
Energy: 66.6Wh
Capacity: 9000mAh
Charging time: approx. 10 hours
Working time: up to 6-7 hours with LEDs at maximum brightness (single charge)
What's Included:
1 x 23mm Camera head
1 x 60m cable wheel
2 x Plastic guides(dia.80mm and dia.46mm)
1 x remote control
1 x screw driver
1 x power adapter
1 x car charger
1 x connection cable
1 x Screws and camera head waterproof seal
1 x waterproof control box with monitor mounted

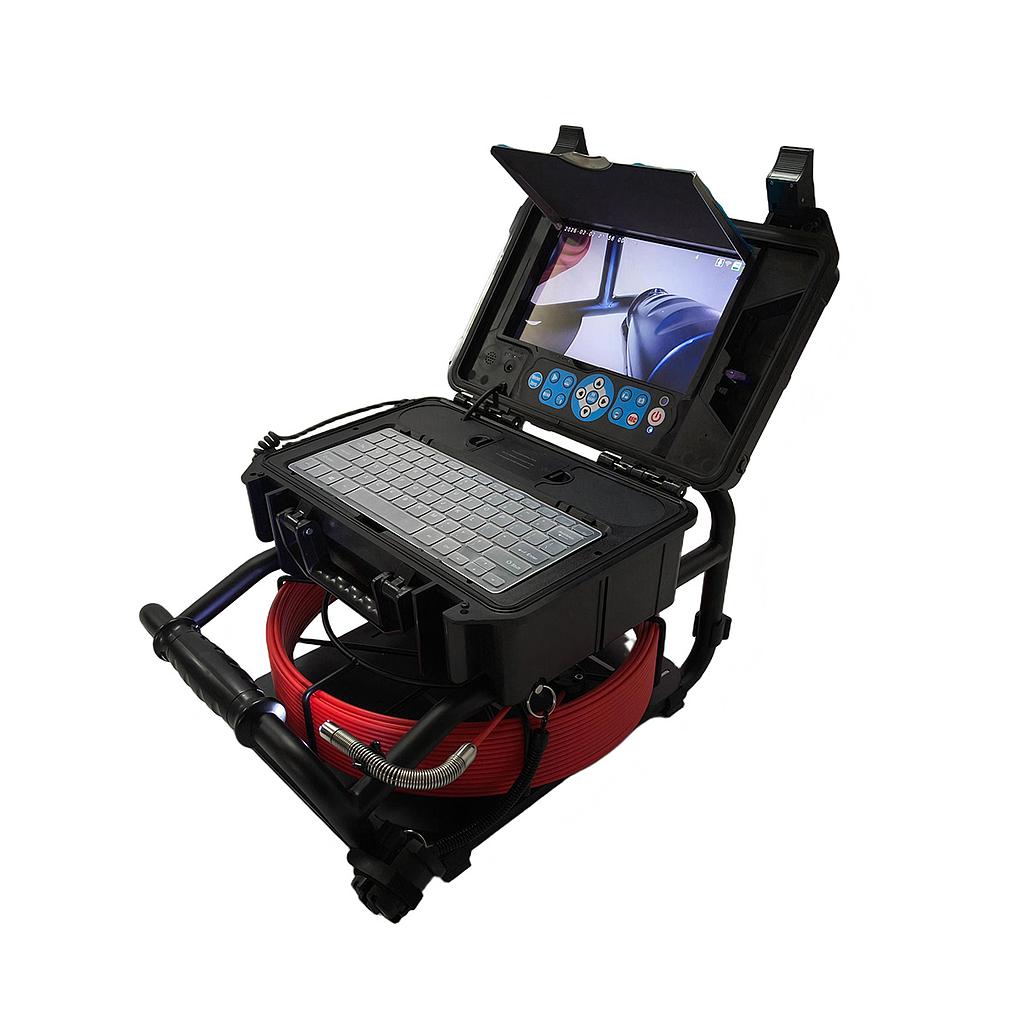

This upgraded, versatile pipe inspection camera is designed for sewer pipes, air ducts, underground cables, and more. It features a Φ14 /18 mm CMOS camera head, a 20–40 m fiberglass push rod, and a 10.1" or 13.3" LCD monitor with SD card and U-disk recording.
The system is suitable for inspecting DN20–90 mm pipes and can easily navigate 90° bends in Φ32 mm pipes. Key features include a removable battery, a multifunction keyboard, Wi-Fi function, video recording with mute/unmute option, 1080P Full HD image clarity, 20× digital zoom, a built-in speaker, and an optional backpack straps for enhanced portability.
The control unit can optionally be equipped with a telescopic pull handle and wheels, making transportation easy and convenient
