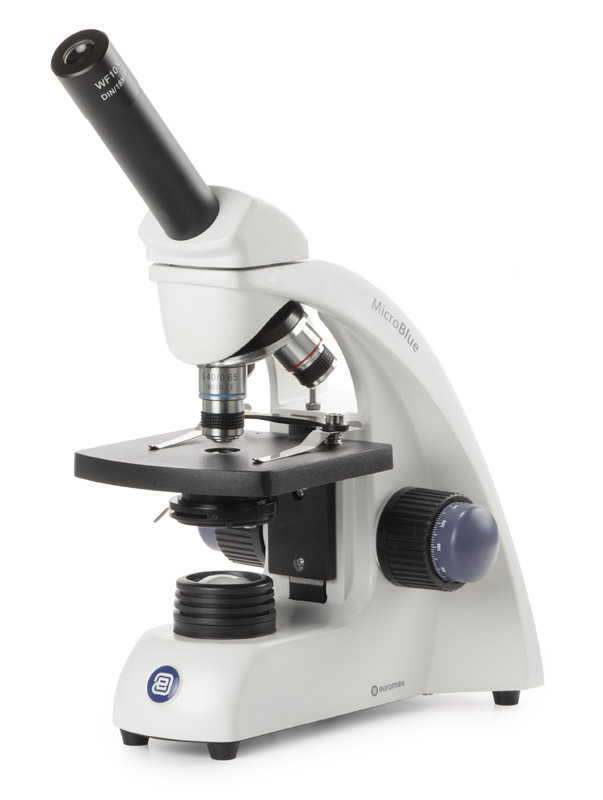

Secured wide field eyepiece WF 10x/18 mm with fixed pointer
Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
Nosepiece for 3 objectives. Ball-bearing mechanism and click-stops
Achromatic 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65 DIN 35 mm parfocal objectives
The S40x objective is spring-mounted
Square stage 105 x 105 mm with two object clamps
Coaxial coarse and fine adjustments with 200 graduations. Precision 15 μm, 3 mm per rotation. Total travel approximately 15 mm. Friction adjustment
Friction of focus control can be adjusted
Fixed lens N.A. 0.65 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power supply/charger
Paint with Antibacterial Protection Layer
Supplied with manual and dust cover in styrofoam case
