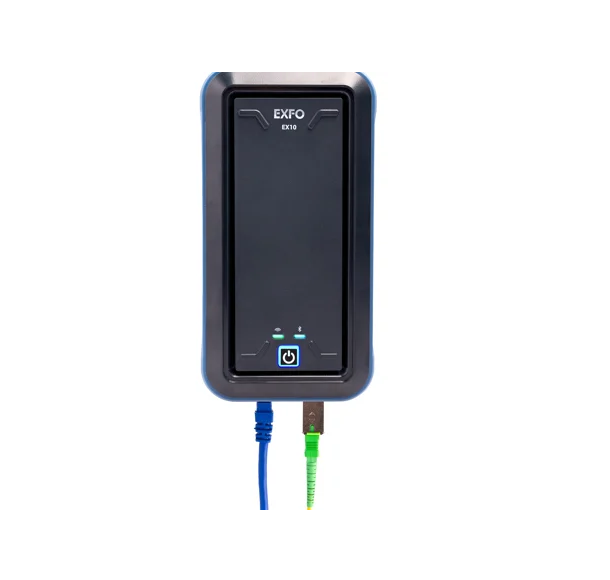

EXFO EX10 Gigabit, GPON and WiFi testing

GENERAL SPECIFICATIONS

Size (H x W x D): 105 mm x 200 mm x 60 mm (4 1/16 in x 7 13/16 in x 2 3/8 in)

Weight: 0.8 kg (1.75 lb)

Temperature

Operating: 0 °C to 40 °C (32 °F to 104 °F)

Storage with battery (short term < 1 month): –10 °C to 40 °C (14 °F to 104 °F)

Relative humidity range: ≤ 93 %, non-condensing

INTERFACES

Electrical RJ45 test port: 100/1000/2500/5000/10000 Mbit/s

Optical SFP test port: 1GE SFP, SFP GPON ONT (upcoming release) (2.4 Gbit/s download and 1.2 Gbit/s upload) and

10GE SFP+, SFP+ XGS‑PON ONT (10 Gbit/s download and 10 Gbit/s upload)

USB port: USB 3.0 type-C port

Bluetooth: Bluetooth v5.0

WiFi: WiFi 6E (2.4 GHz, 5 GHz and 6 GHz)

BATTERY/POWER SUPPLY

Type: Rechargeable Li-ion smart battery

Battery autonomy: One full day of customer visits (i.e., average of 10 residential broadband customer visits)

Charging time: 3.5 h using supplied wall charger

AC/DC adapter/charger: Input: 100–240 VAC; 50/60 Hz; 1.0 A max, output: 5 V, 9 V, 12 V, 15 V; 3.0 A and 20 V; 2.25 A

SMART DEVICE REQUIREMENTS

Smart device supported: Android OS and iOS-based devices

OS version: Android 7.0 Nougat and higher, iOS 13 and higher

Bluetooth support: Bluetooth low energy technology (version 4.0 and higher)

Datasheet
