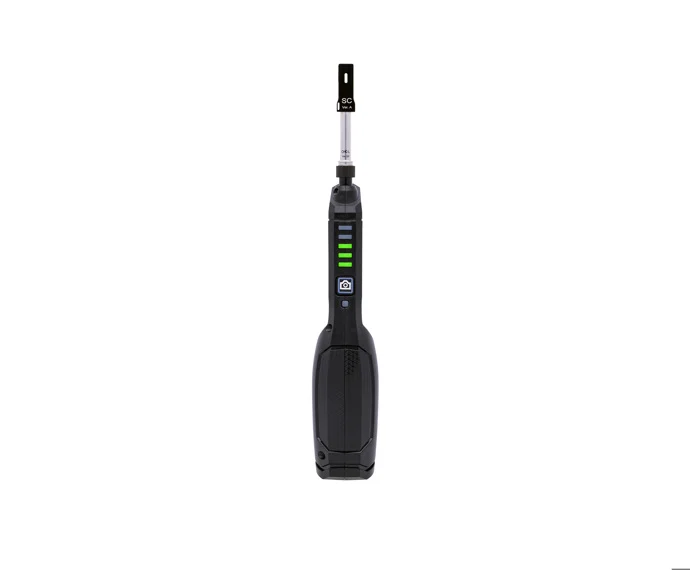

EXFO FIP-200 Connector Checker

SPECIFICATIONS

End-to-end inspection and analysis time: 7 seconds

Field of view : Single-fiber: 0.75 mm × 0.75 mm

Pass/fail analysis : 5-bar rating for FTTH networks

Camera sensor: 5 megapixels

Light source : Blue LED at 460 ±10 nm

CPU : 1.4 GHz dual core

Connectivity : Bluetooth® and WiFi

Battery type : Lithium-ion polymer (Li-Po) rechargeable battery

Autonomy : 210 captures; 3h30 at 1 capture per minute

Charging time : 46 minutes to 50%; 120 minutes to 100%

Connector : USB-C

Local storage capability : 100 single-fiber measurements

EXFO Exchange synchronization: Yes

GENERAL SPECIFICATIONS

Size (H × W × D): 247 mm × 40 mm × 38 mm (9 3/4 in × 1 5/8 in × 1 1/2 in) a

Reach (long-reach head): 60 mm (2 3/8 in)

Weight : 137 g (0.3 lb)

Temperature Operating:

Storage:

–10 °C to 40 °C (14 °F to 104 °F)

–20 °C to 60 °C (–4 °F to 140 °F)

Humidity range: 0 % to 95 % non-condensing

Supported languages (user manual): English, French
