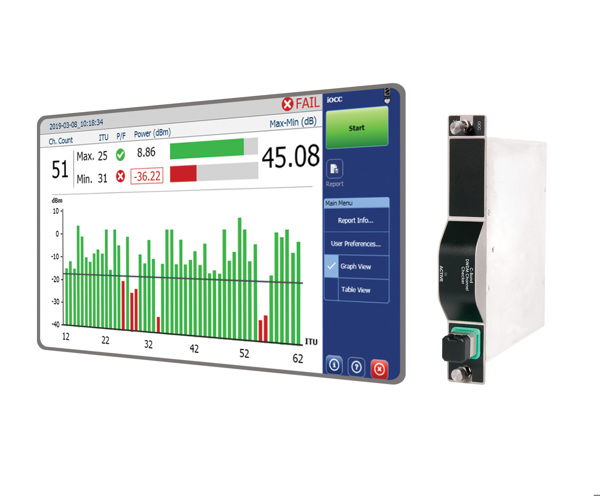

EXFO FTBx-5205 Simple DWDM channel checker

TECHNICAL SPECIFICATIONS

Wavelength range (C-band): 1527.99-1567.95 nm (191.2-196.2 THz)

ITU channels: ITU-T G694.1 channels 12-62

Channel spacing: DWDM 100 GHz

Dynamic range per channel (dBm): 10 to –40

Maximum total safe power (dBm): 20

Absolute power uncertainty (dB) (typical): 1

ORL (dB): > 35

Measurement time (s): < 3

BUILT-IN POWER METER SPECIFICATIONS (GeX) (OPTIONAL)

Calibrated wavelengths (nm): 850, 1300, 1310, 1490, 1550, 1625, 1650

Power range (dBm): 27 to —50

Uncertainty (%): ±5 % ± 10 nW

Display resolution (dB): 0.01 = max to —40 dBm; 0.1 = —40 dBm to —50 dBm

Automatic offset nulling range Max power to" —30 dBm

Tone detection (Hz): 270/330/1000/2000

VISUAL FAULT LOCATOR (VFL) (OPTIONAL)

Laser, 650 nm ± 10 nm

CW/Modulate 1 Hz

Typical Pout in 62.5/125 µm: > –1.5 dBm (0.7 mW)

Laser safety: Class 2
