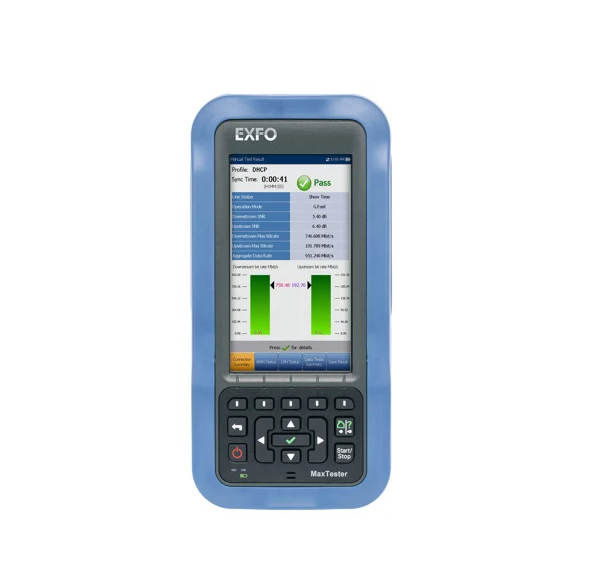

EXFO MaxTester 635G Copper, xDSL and Gfast test set

GENERAL SPECIFICATIONS

Display: Touchscreen TFT LCD with backlight; 152 mm (6 in) diagonal; 800 x 480 resolution, WVGA

Test connections:

RJ11 for Gfast/ADSL2+/VDSL2

Five-color banana connector for T/A, R/B, G, T1/A1, R1/B1 and for Gfast/ADSL2+/VDSL2

RJ45 for Ethernet 10/100/1000 WAN

RJ45 for Ethernet 10/100/1000 LAN

Results management:

> 2 GB internal memory

Single and bulk file export to USB memory devices

FTP upload

Temperature

Operating: 0 °C to 40 °C (32 °F to 104 °F)

Storage: –20 °C to 60 °C (–4 °F to 140 °F)

Relative humidity: 5 % to 95 %, non-condensing

Shock: 1 m (39 in) drop per GR-196-CORE

Altitude: 3000 m (9842 ft)

Input power: 12 VDC, 4.16 A, 48 W via 90-264 VAC adapter or 12 VDC, 5 A, vehicle adapter

Battery: Internal rechargeable lithium polymer, with battery state and level indication, adjustable auto-power down.

Standard battery is 10 000 mAh; extended battery is 20 000 mAh

Safety: CE and CSA marked

Size (H x W x D): 254 mm x 124 mm x 62 mm (10 in x 4 7/8 in x 2 7/16 in)

Weight (with battery): 1.9 kg (4.2 lb)

Water/dust ingress: Designed to comply with IP54

Differential voltage protection: 354 VRMS or 1000 VDC max

Common mode voltage protection: 354 VRMS or 1000 VDC

Voltage detection: > 20 V will trigger alarm message

Self-test: Routine on power-up

Connectivity:

USB 2.0 client ports (2)

USB type B host port (1)

Optional WiFi support

Languages: English, French, German, Italian, Polish and Spanish
