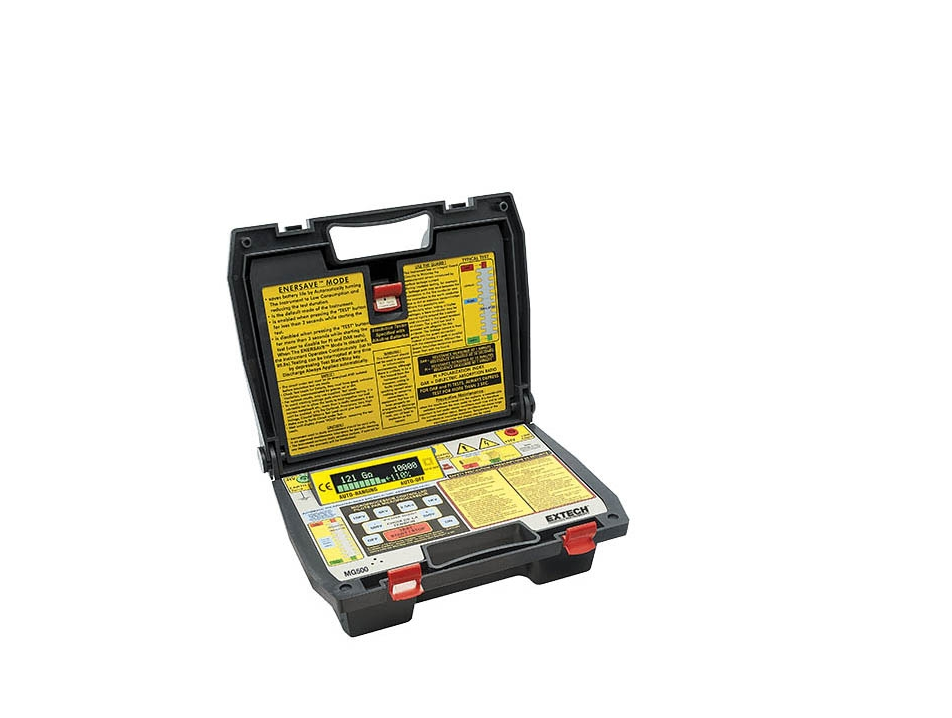

EXTECH MG500 Digital High Voltage Insulation Tester (800kΩ~500GΩ, 500VDC to 10kVDC)

Name: EXTECH MG500 Digital High Voltage Insulation Tester (800kΩ~500GΩ, 500VDC to 10kVDC)
Brand: EXTECH
Availability: OutOfStock

ModelMG500

OriginTaiwan

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

- Insulation Resistance: 800kΩ to 500GΩ ( Autoranging )

- Resolution: 1kΩ

- Basic Accuracy: ±5%

- Test Voltages: 500VDC to 10kVDC (adjustable in 500V steps)

- Preset Buttons: 1kV, 2.5kV, 5kV, 10kV

- Polarization Index : Yes

- Dielectric Absorption Ratio: Có

- Automatic Discharge: Yes

- Dimensions: 13x10.2x6.3" (330x260x160mm)

- Weight: 7.9lbs (3.6kg)

Complete with built-in heavy duty carrying case with cover, test leads, alligator clips, and 8 x C batteries
