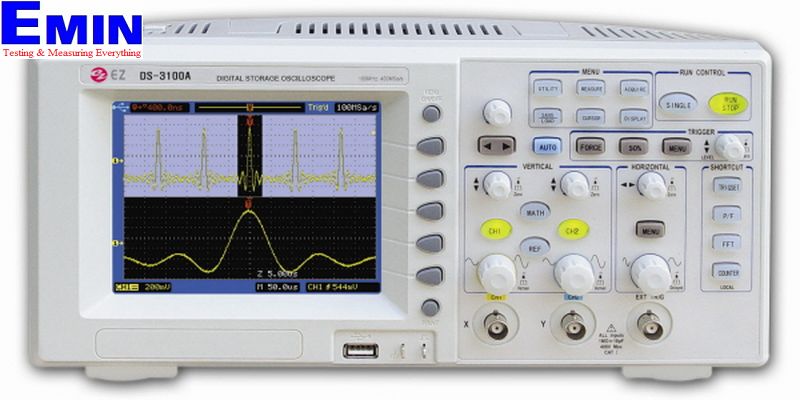

Bandwidth:60MHz
Real-time sampling rate: Max. 1GSa/S
Memory Depth: 2.4Mpts per Channel, 1.2Mpts per Dual Channel
Vertical A/D resolution: 8 Bits
Sampling mode: Sample, Peak Detect, Averaging
Max input voltage: 400V (DC+AC peak, @1㏁)
Measurement Voltage : Max, Min, VPP, High, Low, Amplitude, Average, RMS, Overshoot, Preshoot, Cycle RMS, Cycle average
Measurement Time:Frequency, Period, Rising Time, Falling Time, +Width, -Width, +Duty, -Duty, Delay, Phase, X@Max, X@Min
Measurement Frequency counter:CH1+CH2, CH1-CH2, CH1×CH2, FFT (1,024points)
Measurement Cursor: Auto, Manual, Track
Math: 5 digit frequency counter up to full bandwidth
Interface: USB Host & Device, RS-232C and Pass /Fail Out
Display: 5.6-inch TFT Color LCD
Resolution: 320(horizintal) × 234(vertical) dot matrix
Line voltage: 99V ~ 242V AC
Dimension:320mm(W) × 156.5mm(H) ×123mm(D)
Weight: 2.5Kg
Manufacture : EZ - Korea
Origin : Korea
