Width: 4.7 mm
Height: 16.3 mm
Length: 10.67 mm
Fall Time: 25 ns
Rise Time: 30 ns
Technology: Si
Unit Weight: 2 g
Channel Mode: Enhancement
REACH - SVHC: Details
Configuration: Single

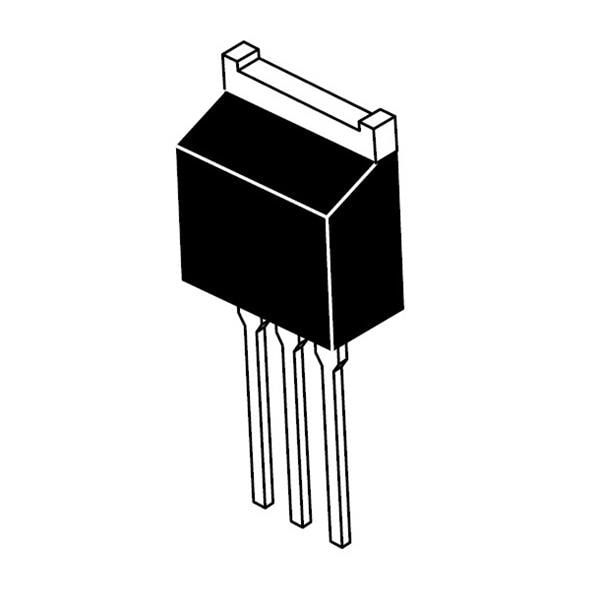

Mounting Style: Through Hole
Transistor Type: 1 N-Channel
Qg - Gate Charge: 6 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 30 W
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Typical Turn-On Delay Time: 10 ns
Typical Turn-Off Delay Time: 10 ns
Id - Continuous Drain Current: 2 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 3.4 Ohms
Vds - Drain-Source Breakdown Voltage: 400 V
Vgs th - Gate-Source Threshold Voltage: 3 V
