What is SF6 density and what role does it play in the electrical system?
SF6 gas is an insulating medium for switches and high voltage electrical cabinets. The specific gravity of SF6 reflects the density of the gas in the insulating chamber. If the gas is thin, the insulating ability is reduced, increasing the risk of arcing or ignition in the chamber. When the gas is too thick, the internal pressure increases, increasing the risk of the casing rupturing or the relay not working properly.
SF6 density relays monitor changes in pressure and temperature within the equipment to maintain the gas at standard levels. If the relay is faulty or incorrectly set, the system may send false alarms or not alarm when the gas is too thin. Therefore, periodic density testing is an important step in GIS cabinet maintenance and SF6 relay testing.
In the field, many engineers often encounter situations where the alarm relay does not match the visual perception. When the pressure in the cabinet drops, the cabinet still operates normally but the relay may report the wrong level. Using an SF6 density meter helps determine the current gas density, thereby deciding whether to add gas, replace the relay or adjust the device.
Wuhan HTMD-H Specifications and Functions
Wuhan HTMD-H SF6 Density Relay Tester operates on AC 220V 50Hz, 50W power, 0.2 accuracy. The device measures pressure from 0 to 1 MPa with a resolution of 0.001 MPa, ambient temperature from -20 to 80 degrees C with a resolution of 0.1 degrees C. Ambient humidity ≤90% RH does not affect the measurement results. The device supports many types of SF6 relays including single alarm, single atresia, combined alarm and atresia, and dual atresia.
The device displays the current pressure and the equivalent pressure at 20 degrees Celsius, allowing direct comparison with the standard value. The 320x240 LCD screen displays data clearly. The rotary mouse allows quick and convenient operation when measuring multiple devices continuously. The built-in micro printer prints reports and saves 50 test results at the same time, making it convenient to monitor and compare results.
This device allows relay testing in the laboratory and in the field without complicated auxiliary equipment. The advantages are stable data, intuitive operation and easy reading.
Practical application
In the field, maintenance engineers often have to check many GIS cabinets in a row. If using the traditional method, manually measuring pressure and calculating the temperature conversion takes a lot of time and is prone to errors. Wuhan HTMD-H allows direct measurement of pressure and temperature, automatically converting pressure to 20 degrees Celsius, helping engineers know the actual density immediately without complicated calculations.

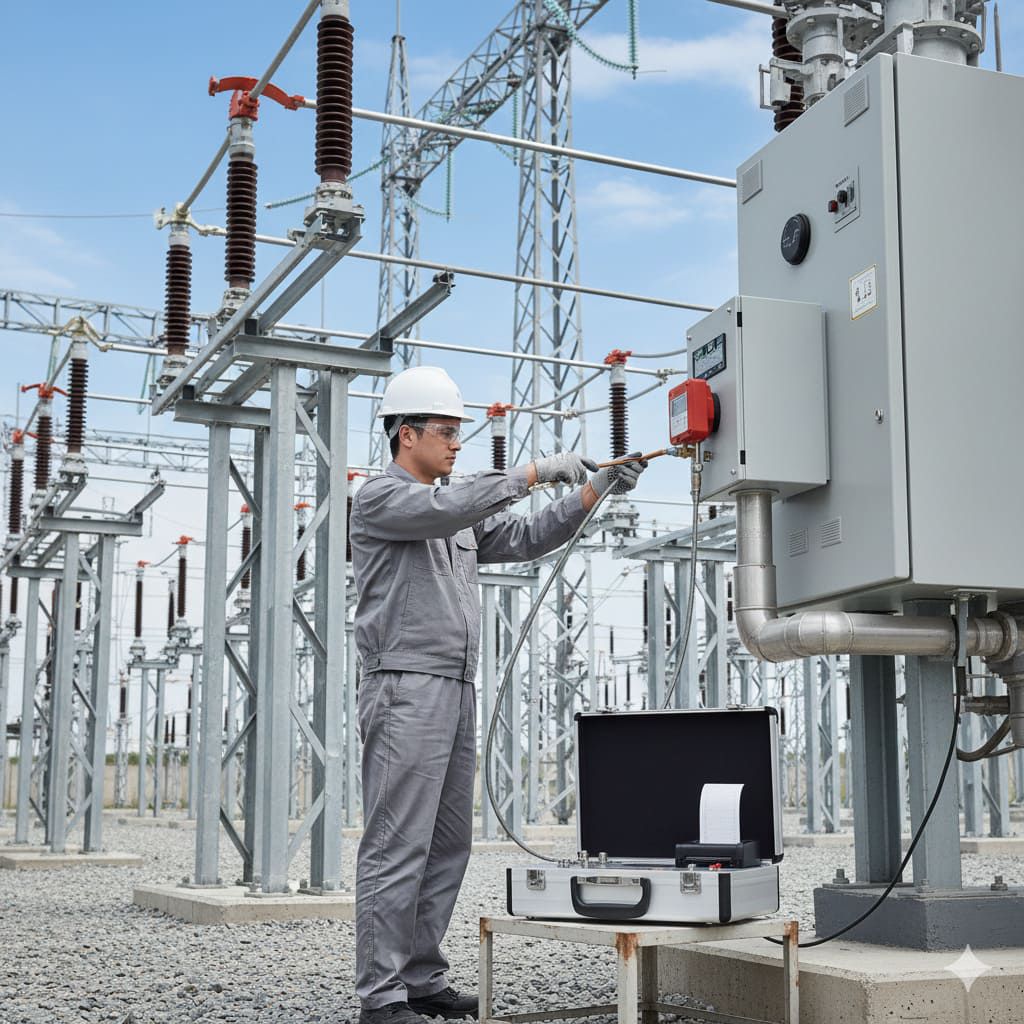

When working with high-pressure systems, many GIS cabinets are placed close together. Engineers can bring HTMD-H to each cabinet, measure the relay and print a report right on the field. If a false alarm relay is detected, the engineer can make a record of inspection, add SF6 gas or request replacement of the equipment.
For laboratories or technical training centers, the device helps students and engineers learn how to read SF6 density, observe the effects of temperature and pressure on relays. The results are stored and printed reports help compare multiple measurements, evaluate relay performance over time.
Many practical cases show that relays give false alarms when the gas is thin or the ambient temperature changes. Using HTMD-H, these errors are detected early, reducing the risk of unsafe operation and saving maintenance costs.
Detailed operation and notes
The operation of HTMD-H is simple. After connecting the SF6 gas pipe to the relay, read the current pressure and the equivalent pressure at 20 degrees Celsius directly on the LCD screen. The rotary mouse helps to change the display mode and select the relay to be measured. When it is necessary to save the results, the machine automatically records the data and can print a quick report.
The device requires a stable 220V AC power source. During the measurement, it is necessary to ensure a tight gas connection to avoid leakage.
By proper operation and continuous data storage, engineers can monitor the SF6 relay status over time, plan maintenance and calibration, and avoid unwanted problems.
Outstanding advantages of the device
The first advantage is clear and stable data. The pressure and temperature measuring device, automatically converted to standard pressure, allows easy comparison of results with technical values. The large LCD screen helps to read data quickly, the mouse is convenient to operate, the built-in printer saves and prints reports to help track multiple consecutive measurements.
The device can be used in the field or in the lab, suitable for both maintenance engineers, testing staff and engineering students. Using the right device, differences in SF6 gas density are detected early, reducing operational risks and saving maintenance costs.
Conclude
For those working with SF6 systems, including maintenance engineers, high voltage system students or testing personnel, choosing the right density meter is very important. Wuhan HTMD-H offers a wide pressure range, large LCD display, intuitive operation, fast data storage and report printing. The device helps to check SF6 relays, monitor gas in equipment and detect abnormalities in time.
