The Model A8-AF Radome Moisture Meter indicates the moisture pockets in aircraft radomes by measuring the radio frequency dielectric power loss of material in contact with the electrode sensor. The RF power loss absorption principle is a patented feature of all Finna Group products.
Direct reading, colored comparator scale for instantaneous indication of moisture
Spring-loaded electrode buttons allow nondestructive testing of irregular or curved surfaces
Comes with electrode, rechargeable batteries, battery charger, carrying case and operating instructions
Completely tested and approved by the United States Air Force
Federal Stock Number 6635-01-017-1694
Additional Information
Process: Handheld
Pin Feature: Pinless
Contact Feature: Contact
Measurement Method: Radio Frequency
Reading Feature: Analog
Voltage:115 VAC, 220 VAC

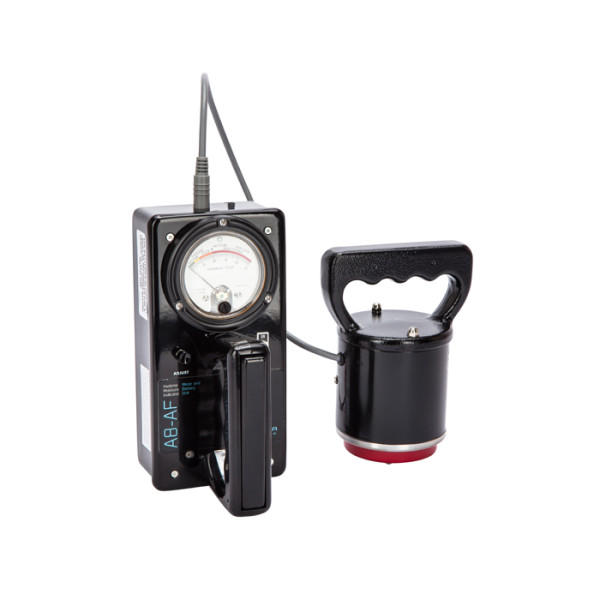

The Model A8-AF radome moisture meter consists of two basic components: the electrode sensor and the metering unit. These components are connected by a 2’8″ cable attached with interchangeable push-in connectors. The separate electrode sensor permits testing in remote areas, and the simple operating procedures allow the Model A8-AF to be used by both technical and non-technical operators.
Equipped with a special direct reading, colored comparator scale calibrated for radomes, the Model A8-AF provides quantitative readings of Good, Fair, Poor, or Unacceptable radomes. The meter also has a low battery charge indication in the form of meter zero drift.
The Model A8-AF radome moisture meter is a direct replacement for the Model AFK2D which was the accepted instrument for many years in the aircraft industry for measuring moisture content of radomes.
Click the link to see an Industry Spotlight of the effects bad radome can have on aircraft and how the A8-AF solves the issue.
Key Features:
| Process | Handheld |
|---|---|
| Pin Feature | Pinless |
| Contact Feature | Contact |
| Measurement Method | Radio Frequency |
| Reading Feature | Analog |
| Voltage | 115 VAC, 220 VAC |
