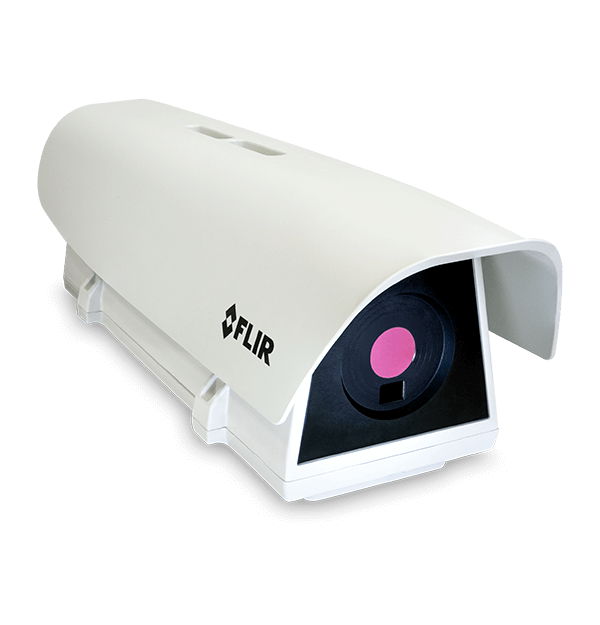

FLIR A700f Fixed-Mount Thermal Imaging Camera (-20~2000°C, 640 × 480, 24°) | EMINKH.COM

FLIR A700f Fixed-Mount Thermal Imaging Camera (-20~2000°C, 640 × 480, 24°)

Name: FLIR A700f Fixed-Mount Thermal Imaging Camera (-20~2000°C, 640 × 480, 24°)
Brand: FLIR

ManufacturerFLIR(View more products from this manufacturer)

ModelA700f

P/N85905-0301

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

IR Resolution: 640 x 480

Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15° to 35°C (59° to 95°F) and object temperature above 0°C (32°F)

Imaging & Optical

Contrast Enhancement: FSX® / Histogram equalization (IR only)

Detector Pitch: 12 µm

Detector Time Constant: Typical 7 ms

f-number: 1.3

Focal Length: 17 mm

Focal Plane Array (FPA): Uncooled microbolometer

Focus: Motorized focus, manual & on-command automatic (scene contrast method)

Image Fequency: 30 Hz

IR Resolution: 640 x 480

Minimum Focus Distance: 0.15 m (0.49 ft)

MSX: Yes

Multi-Streaming: Yes

Overlay: With / Without

Radiometric IR video streaming: RTSP protocol to FLIR Atlas SDK

ReadoutMeasurement results: • Ethernet/IP • Modbus TCP server (pull) • Modbus TCP client (push) • MQTT (push) • REST API (GET/POST) • Measurements and still image (radiometric JPEG, visual 640 × 480, visual 1280 × 960) • Web interface

Spectral Range: 7.5–14 µm

Streaming Resolution: Video stream 0: 640 × 480 pixels; Video stream 1: 1280 × 960 pixels; Radiometric stream: 464 × 348 pixels

Video Streaming: RTSP protocol

Visual Resolution: 1280 × 960

Measurement & Analysis

Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15° to 35°C (59° to 95°F) and object temperature above 0°C (32°F)

Alarm Functions: On any selected measurement function, digital in, and internal camera temperature

Alarm Output: • Digital out • E-mail (SMTP) (push) • Ethernet/IP • File transfer (FTP) (push) • Modbus TCP server (pull) • MQTT (push) • Query over RESTful API (pull) • Store image or video

Atmospheric transmission correction: Based on inputs of distance, atmospheric temperature, and relative humidity

Automatic hot & cold detection: Max./min. temperature value and position shown within box

Measurement Corrections: Global object parameters; local parameters per analyze function

Measurement Presets: Yes

Measurement Tools: 10 spotmeters, 10 boxes or mask polygons, 3 Deltas (difference any value/reference/external lock), 2 isotherms (above/below/interval), 2 iso-coverage, 1 reference temperature, 2 lines, 1 polyline Maximum 12 measurement functions at the same time.

Object Temperature Range: –20° to 120°C (–4° to 248°F); 0° to 650°C (32° to 1202°F); 300° to 1500°C (572° to 2732°F)

User Interface

Web interface: Yes

Power

Power Consumption: 30W PoE, PoE+, Type 2. IEEE 802.3af, IEEE 802.3at/PoE Plus

Environmental & Certifications

EMC :EN50130-4, EN61000-6-3, EN55022 Classe B, FCC Part. 15 Class B

Encapsulation: IP67

Mounting: Bought separately, pole and wall adaptors available

ONVIF Conformance: Yes. ONVIF Profile S

Operating Temperature Range: -30°C to 50°C (-22°F to 122°F)
