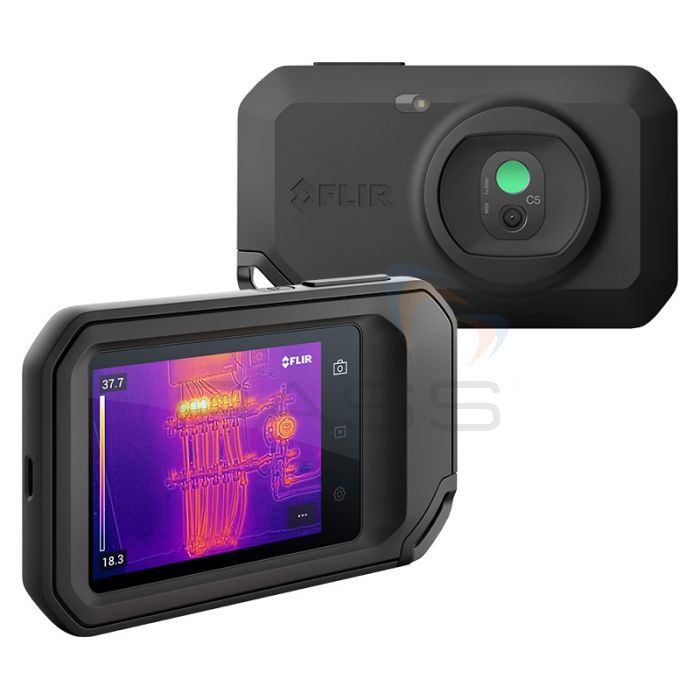

FLIR C5 Thermal camera (-20 ~ 400°C)

Accuracy: At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%

Object Temperature Range: -20 to 400°C (-4 to 752°F)

IR Sensor: 160 x 120 (19,200 pixels)

Touchscreen: Capacitive touch

Screen Rotation: Yes

FLIR Screen-EST Mode: No

CONNECTIONS & COMMUNICATIONS

BluetoothPAN

Storage Media: Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)

USB: USB 2.0, Type-C connector

WiFi: 802.11 a/ac/b/g/n (2.4 and 5 GHz)

Image Upload: Directly upload images to FLIR Ignite cloud library and services

ENVIRONMENTAL

Drop test2 m (6.6 ft)

Encapsulation: Camera housing and lens: IP54 (IEC 60529)

Operating Temperature Range: -10 to 50°C (14 to 122°F)

Storage Temperature Range: -40 to 70°C (-40 to 158°F)

Tripod Mounting: UNC ¼"-20 (built-in)

IMAGING & OPTICAL

Color palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

Digital Camera: 5 MP

Digital Camera Focus: Fixed

Focus: Focus free

Gallery: Thumbnails and custom folder structure

Image Adjustment: Automatic level and span, Manual level and span, 1-Touch Level/Span

Image Frequency: 8.7 Hz

Image Modes: Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)

Minimum Focus Distance: Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)

Spectral Range: 8 to 14 µm

MEASUREMENT & ANALYSIS

Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation

Thermal Sensitivity<70 mK

Measurement Functions: Spot, Box with max./min.

METER DATA

Camera size (L x W x H): 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)

PHYSICAL FEATURES

Screen Size: 3.5 in

Weight [including battery]: 0.19 kg (0.42 lb)

POWER

Battery operating time: 4 hours

Battery Type: Rechargeable built-in Lithium ion battery

Charging system: USB-C (1 A)

Charging Time: 2 hours

External Power Operation: 5 V, USB-C

STORAGE MEDIA

File Formats: Standard JPEG, 14-bit measurement data included

Image Storage: >5000 images
