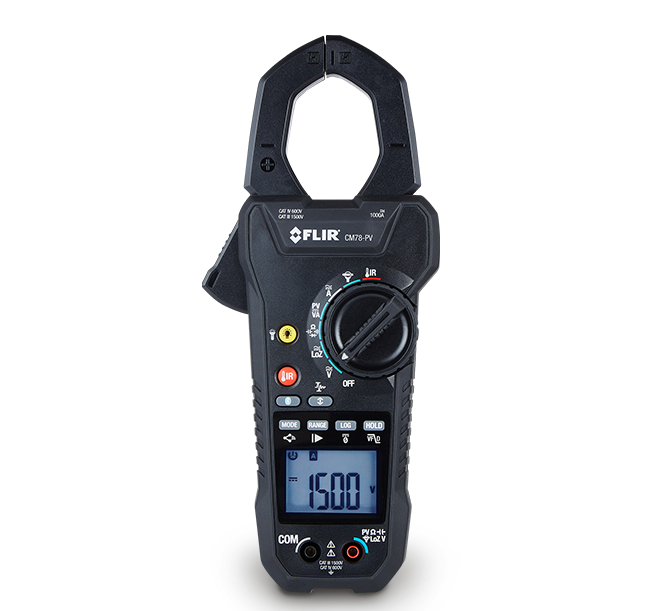

FLIR CM78-PV Solar Clamp Meter (True RMS, 1000AAC/DC, 1500VDC, 1000VAC)

Electrical Measurement

Display count: 6000

True RMS: Yes

AC V: 1000 V | ±1.0%

DC V: 1500 V | ±1.0%

VFD AC V: 1000 V AC | ±2.0% at 45 Hz to 65 Hz

AC LoZ V: 1000 V | ±1.5%

DC LoZ V: 1500 V | ±1.5%

AC/DC A: 1000 A | ±2.0%

VFD AC A: 1000 A | ±5.0%

AC Inrush A: 1000 A | ±3.0%

Frequency counter: 60 kHz | ±1.0%

Resistance: 60 kΩ | ±1.0%

Continuity check: <50 Ω beeper on, >150 Ω beeper off

Diode test: 3.0 V | ±1.5%

Capacitance: 6000 µF | ±3.0%

Flex AC A: 3000 A | ±3.0%

PV DC V: 1500 V | ±2.0%

PV DC Power: 1500 kVA | ±2.0%

Measuring rate: 3 samples per second

Over- and under-range indication: OL

Static Datalogging and Storage

Data storage interval: 1 second

Readings per memory set: 999 set per file

Connectivity

Wireless technology: Bluetooth BLE

Communications protocol: METERLiNK

Bluetooth range: 10 m (32 ft)

Power System

Battery: 6 × AAA Alkaline batteries

Battery life: Approx. 50 hours, with alkaline batteries

Auto power off: After approximately 15 minutes of inactivity

General Information

Display: 6000 count display

Worklight: 2 × White LED

Jaw opening: 42 mm (1.7 in)

Category rating: CAT IV–600 V, CAT III–1500 V

Calibration cycle: Once per year, recommended

Certifications

Certifications: ETL, CE, FCC, DAA, RCM

Safety standards: IEC 61010-1 CAT IV-600 V, CAT III-1500 V

EMC standards: EN61326-1, EN61326-2-2, EN300328, EN301489-1, EN301489-17, EN62478, FCC PART 15B/15C

Environmental Data

Operating ambient temperatures and relative humidity (RH):

–10°C to 30°C (14°F to 86°F), <85% RH

30°C to 40°C (86°F to 104°F), <75% RH

40°C to 50°C (104°F to 122°F), <45% RH

Storage temperature and RH:

–20°C to 60°C (–4°F to 140°F), 0 to 80% RH (without batteries)

Temperature coefficient:

0.2 × (specified accuracy)/°C, <18°C (64.4°F), >28°C (82.4°F)

Operating altitude: 2000 m (6560 ft)

Pollution degree: 2

Meter Physical Data

Weight: 630 g (1.39 lbs)

Dimensions (L × W × H): 257 mm × 110 mm × 50 mm (10.2 in × 4.3 in × 2 in)

Included in the box:

CM78-PV

Carrying Pouch (TA91)

CAT III–1500 V double molded test leads (TA90)

CAT III–1500 V MC4 PV Plugs (TA89)

6 × AAA (LR03) Battery

User Manual

Datasheet
