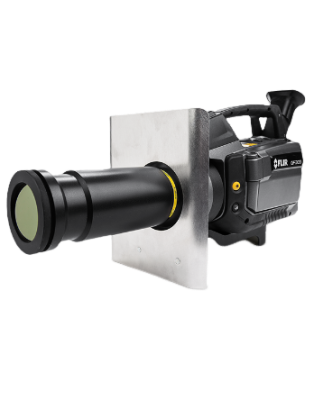

FLIR GF309, 24° Furnace and Electrical Inspection Camera (-20°C ~ 1,500°C, <15 mK @ +30°C (+86°F); 3.8 – 4.05 µm)

Temperature Range: -20°C to 1.500°C (-4°F to 2.732°F)

Accuracy: ±1°C (±1.8°F) for temperature range 0°C to +100°C (+32°F to +212°F) or ±2% of reading for temperature range +100°C (+212°F)

Field of view (FOV): 24° × 18°

IMAGING & OPTICAL

Adjustable Viewfinder: Tiltable OLED, 800 × 480 pixels

Color LCD: 4.3"; 800 × 480 Pixels

Detector Type: Cooled InSb

Field of view (FOV): 24° × 18°

Focus: Auto & Manual

High Temp Option: Yes

Laser Spot: Yes

Minimum Focus Distance: 0.3 m (1.0 ft.)

MPEG Video Recording: Yes

Radiometric JPG: Yes

Radiometric Video [15Hz]: Yes

Resolution: 320 × 240

Spectral Response: 3.8 – 4.05 µm

Total Pixels: 76800.0

Video Camera wLamp: 3.2 MP

Zoom: 1 – 8× continuous digital

MEASUREMENT & ANALYSIS

Accuracy: ±1°C (±1.8°F) for temperature range 0°C to +100°C (+32°F to +212°F) or ±2% of reading for temperature range +100°C (+212°F)

Area Box: 5 (min./max./avg.)

Delta T: Yes

Profile: 1 live line (horiz. or vert.)

Spot Meter: 10.0

Temperature Range: -20°C to 1,500°C (-4°F to 2,732°F)

Thermal Sensitivity: <15 mK @ +30°C (+86°F)

GENERAL

GPS [compass]: Yes

Packaging Size: 400 x 190 x 510 mm (15.7 x 7.5 x 20.1 in.)
