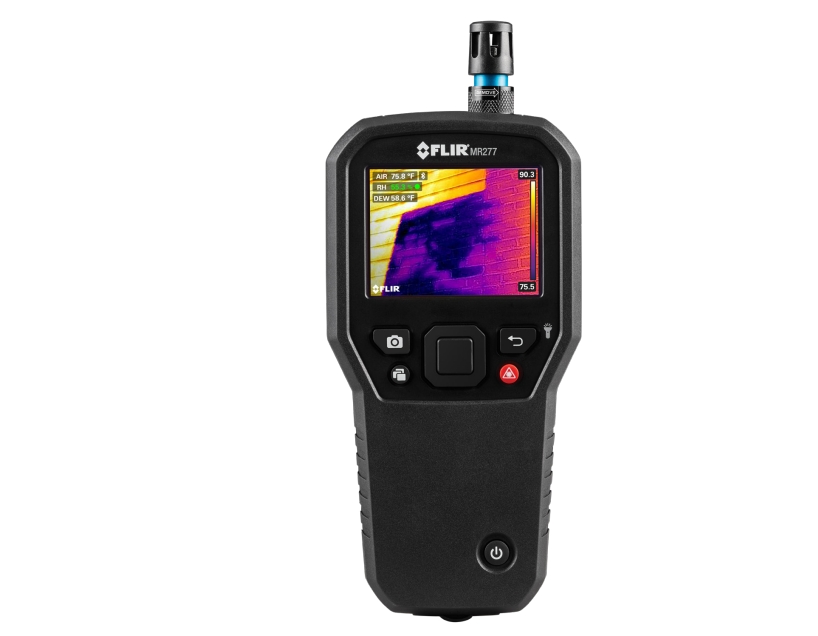

FLIR MR277 Moisture tester (0%~100%)

Laser Orientation: Single laser pointer to center of thermal image

Packaging Size: 55 × 31 × 32 (21.6 × 12.3 × 12.4 in)

Sensitivity: 70 mK

ENVIRONMENTAL

Mixing Ratio: Range 0 to 560 GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2 GPP (0.25 g/kg)

Relative Humidity: Range 0 to 100% / Basic Accuracy 2.5% RH

Vapor Pressure: Range 0.0 to 12.0 kPa / Basic Accuracy ±0.05 kPa

IMAGING & OPTICAL

Continuous Run Time: 16 hours max

Display Type: QVGA (320 × 240 pixels) 2.8 in. color TFT graphical display

Image Update Speed Frequency: 9 Hz

Imaging Detector: FLIR Lepton microbolometer

Spectral Response: 8 to 14µm

Thermal image minimum focus distance: 10 cm (4 in)

Thermal image palettes: Iron, Rainbow, Arctic, White-Hot, Black-Hot

Field of View [W x H]: 55° × 43°

Thermal Image Resolution [W x H]:19200 pixels (160 × 120)

MEASUREMENT & ANALYSIS

Air Temperature: Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)

Dew Point: Range -30°C to 50°C (-22°F to 122°F) / Basic Accuracy ±1.0°C (±1.8°F)

Image Calibration: Automatic with manual lock scale option

Measurement Resolution: 0.1

Pin Moisture: Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only

Pin Moisture Groups: 11 Material Groups

Pinless Measurement Depth: 19 mm (0.75 in) max

Pinless Moisture Range: 0 to 100

Response Time Pin Mode: 750 ms

Response Time Pinless: 100 ms

POWER

Battery: Rechargeable 4.2 V, 5400 mAh LiPo

SHIPPING INFORMATION

Includes: FLIR MR13 Replaceable Temperature and Relative Humidity Sensor, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard

STORAGE MEDIA

Saved Image File format: Radiometric JPEG

Stored Image Capacity: 15000 images
