Electrical Measurement
Maximum
Power Value (Pmax): Range: 0 W to 800 W | Accuracy: ±5%
Voltage at
MMPT point (Vmax): Range: 0 V to 60 V | Accuracy: ±5%
Current at
MMPT point (Imax): Range: 0 A to 30 A | Accuracy: ±5%
Open Circuit
Voltage (VOC): Range: 0 V to 60 V | Accuracy: ±1%
Short
Circuit Current (ISC): Range: 0 A to 30 A | Accuracy: ±1%
Device
Temperature Protection: Range: 0°C to 60°C | Accuracy: ±3%
Measuring
rate: 3 samples per second
Power System
Display: TFT
Display
Backlight: White LED array
Calibration
cycle: Once per year, recommended
Certifications
Certifications:
CE, RCM, FCC
Safety
standards: IEC 61010-1
EMC
standards: EN61326-1
Environmental
Data
Operating
ambient temperatures and relative humidity (RH): –10°C to 50°C (14°F to 122°F),
<80% RH
Storage
temperature and RH: –20°C to 60°C (–4°F to 140°F), 0 to 80% RH
Operating
altitude: 2000 m (6560 ft)
Pollution
degree: 2
Meter
Physical Data
Weight: 206
g (0.45 lbs)
Dimensions
(L × W × H): 151.6 mm × 72.5 mm × 38 mm (5.97 in × 2.85 in × 1.50 in)

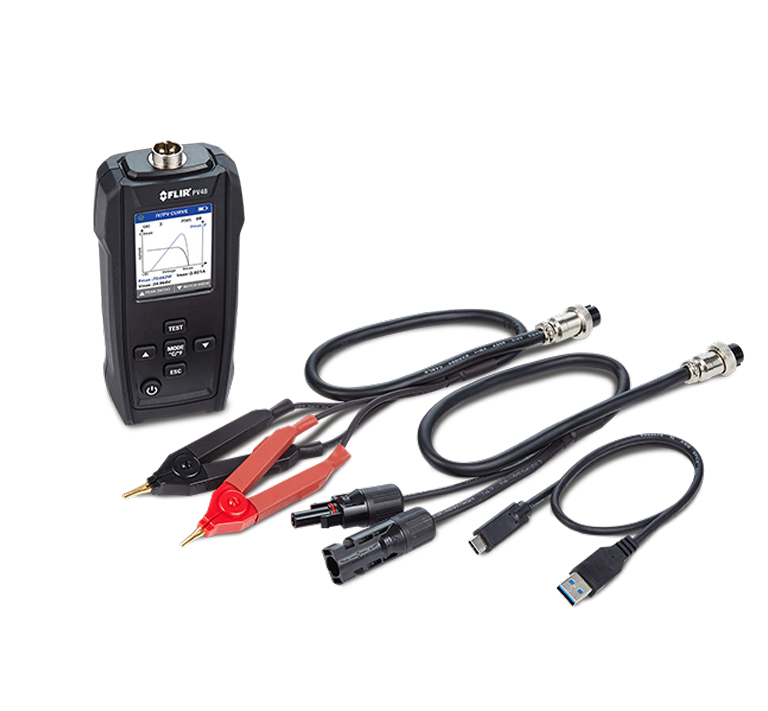

Included in
the box:
PV48
Carrying
Pouch
CAT III–300
V Double-Molded Alligator Clips
CAT III–300
V MC4 PV Plugs
1 × 3.7 V
Li-ion Battery
User Manual
