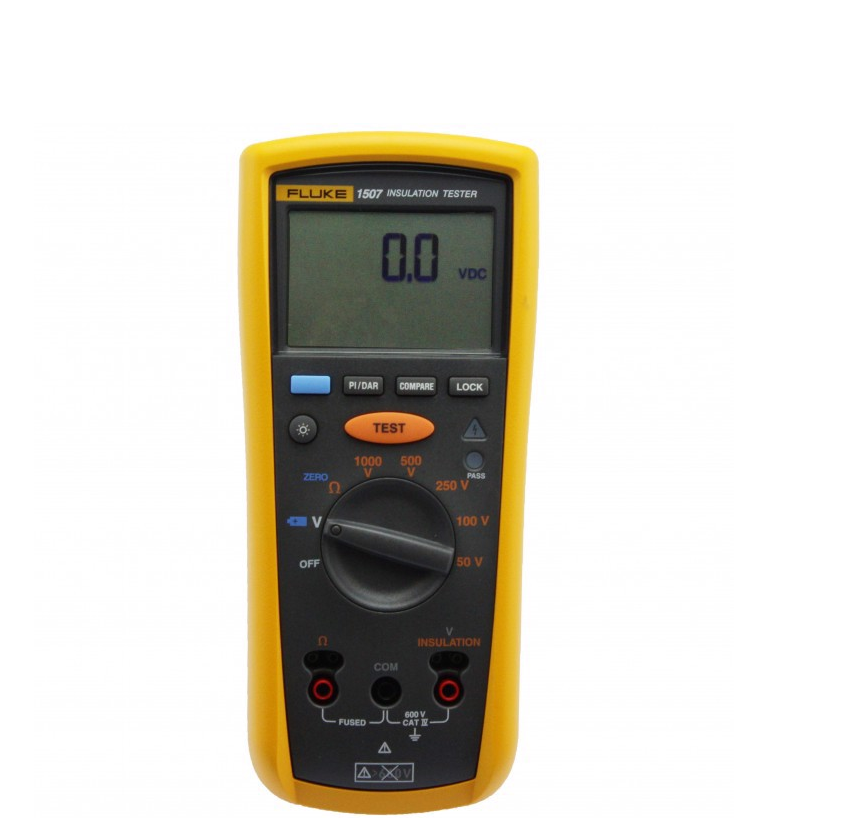

FLUKE FLUKE-1507 Insulation Resistance Testers (1000V, 10GΩ)

Name: FLUKE FLUKE-1507 Insulation Resistance Testers (1000V, 10GΩ)
Brand: FLUKE
Availability: InStock

In Stock: 3 Unit

ManufacturerFLUKE(View more products from this manufacturer)

ModelFLUKE-1507

P/N2427890

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

- AC/DC Voltage Measurement

+ 600.0 V /0.1 V /± 2 % + 3dgt

- Earth bond resistance measurement

20.00 Ω, 200.0 Ω, 2000 Ω, 20.00 kΩ /± 1.5 % + 3 dgt

- Insulation specifications

+ Measurement Range: 10.01 MΩ to 10 GΩ

+ Test voltage: 50 V, 100 V, 250 V, 500 V, 1000 V /+ 20 %

+ Measure Accuracy:

50 V: ±(3 % + 5)

100 V: ±(3 % + 5)

250 V: ±(1.5 % + 5)

500 V: ±(1.5 % + 5)

1000 V:±(1.5 % + 5) to 2000 MΩ, ±(10 % + 3) above 2000 MΩ

Size: 5.0 cm H x 10.0 cm W x 20.3 cm L

Weight: 550 g (1.2 lb)

IP Rating: IP40

Included accessories: TL224 Test Leads, TP74 Test Probes, clips PN 1958654 (red) and PN 1958646 (black), holster and remote probe

AC/DC Voltage Measurement

Accuracy

Range	600.0 V
Resolution	0.1 V
50 Hz to 400 Hz ± (% of Rdg + Digits)	± (2 % + 3)

Input impedance

3 MΩ (nominal), < 100 pF

Common mode rejection ratio (1 kΩ unbalanced):

> 60 dB at dc, 50 or 60 Hz

Overload Protection

600 V rms or dc

Earth bond resistance measurement

Range/Resolution

20.00 Ω	0.01 Ω
200.0 Ω	0.1 Ω
2000 Ω	1.0 Ω
20.00 kΩ	0.01 kΩ

Accuracy

± (1.5 % + 3)

Overload Protection

2 V rms or dc

Open Circuit Test Voltage

> 4.0 V, < 8 V

Short circuit current

> 200.0 mA

Insulation specifications

Measurement Range

1507:	0.01 MΩ to 10 GΩ
1503:	0.01 MΩ to 2000 MΩ

Test voltage

1507:	50 V, 100 V, 250 V, 500 V, 1000 V
1503:	500 V, 1000V

Test Voltage Accuracy

+ 20 %, - 0 %

Short circuit current

1 mA nominal

Auto Discharge

Discharge time < 0.5 second for C = 1 µF or less

Live circuit indicator

Inhibit test if terminal voltage > 30 V prior to initialization of test

Maximum Capacitive Load

Operable with up to 1 µF load

Measure Accuracy:

50 V:	±(3 % + 5)
100 V:	±(3 % + 5)
250 V:	±(1.5 % + 5)
500 V:	±(1.5 % + 5)
1000 V:	±(1.5 % + 5) to 2000 MΩ, ±(10 % + 3) above 2000 MΩ

General Specifications

Maximum voltage applied to any terminal:

600 V ac rms or dc

Storage Temperature

-40 °C to 60 °C (-40 °F to 140 °F)

Operating Temperature

-20 °C to 55 °C (-4 °F to 131 °F)

Temperature Coefficient

0.05 x (specified accuracy) per °C for temperatures < 18 °C or > 28 °C (< 64 °F or > 82 °F)

Relative Humidity

	0 % to 95 % @ 10 °C to 30 °C (50 °F to 86 °F)
	0 % to 75 % @ 30 °C to 40 °C (86 °F to 104 °F)
	0 % to 40 % @ 40 °C to 55 °C (104 °F to 131 °F)

Vibration

Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument

Shock

1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)

Electromagnetic compatibility:

In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)

Safety

Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)

Certifications:

CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition

Batteries

Four AA batteries (NEDA 15A or IEC LR6)

Battery Life

Insulation test use:	Tester can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
Resistance measurements:	Tester can perform at least 2500 earth bond resistance measurements with fresh alkaline batteries at room temperature. These are standard tests of 1 Ω with a duty cycle of 5 seconds on and 25 seconds off.

Size

5.0 cm H x 10.0 cm W x 20.3 cm L (1.97 in H x 3.94 in W x 8.00 in L)

Weight

550 g (1.2 lb)

IP Rating

IP40

Altitude

Operating:	2000 m CAT IV 600 V, 3000 m CAT III 600 V
Non-operating (storage):	12,000 m

Over-range capability:

110 % of range

Included accessories:

TL224 Test Leads, TP74 Test Probes, clips PN 1958654 (red) and PN 1958646 (black), holster and remote probe
