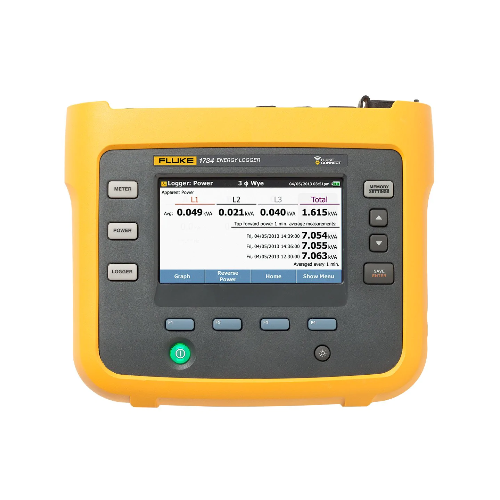

FLUKE FLUKE-1734/B Three Phase Power Measurement Logger (excludes current probes)

Name: FLUKE FLUKE-1734/B Three Phase Power Measurement Logger (excludes current probes)
Brand: FLUKE
Availability: OutOfStock

ManufacturerFLUKE(View more products from this manufacturer)

ModelFLUKE-1734/B

P/N4706582

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Includes:

1734 Energy Logger

WiFi and BLE adapter

USB flash drive (4GB)

USB Cable

3PHVL-173 Flat Cable

1x red, 1x black 0.1m cable

1x red, 1x black 1.5m lead

Alligator clips 4

C173x Soft Case

Color Coding set

173x-Hanger kit

MP1-Magnet Probe 4

Line cord

Datasheet

Manual

Product overview: Fluke 1732 and 1734 Three Phase Power Measurement Logger

Fluke Premium Care eligible

When you invest in your Fluke test tools, you want your money to go as far as possible. Fluke Premium Care is a paid offering that provides coverage above and beyond the original product warranty, so you don’t need to worry about unexpected downtime caused by damaged test equipment, accessories, or tools in need of calibration or repair.

Learn more

Three phase power measurements made easy

The Fluke 1732 (without wifi) and 1734 (with wifi) Three Phase Electrical Energy Loggers deliver easy to use three phase power measurement data for discovering sources of electrical energy waste, overloaded circuits and help you perform routine load studies. Discover when and where energy in your facility is being consumed - from the service entrance to individual circuits. Access and share three phase power data remotely with your team via the Fluke Connect® app so you can maintain safer working distances and make critical decisions in real-time, reducing the need for protective equipment, site visits and check-ins.

Get the Fluke Guide to Choosing Power Quality Tools ‍

Profiling energy usage across your facility helps you identify opportunities for energy savings, and provides you with the data you need to act on them. The new Energy Analyze software package allows you to compare multiple data points over time to build a complete picture of energy usage, which is the first step to reduce the cost of your energy bill.

Key measurements: Automatically capture and log voltage, current, power, power factor, energy and associated values
Fluke Connect® compatible: View data locally on the instrument, via Fluke Connect mobile app and desktop software or through your facilities’ WiFi infrastructure
Convenient instrument powering: Power instrument directly from the measured circuit
Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
Measure all three phases: With included 3 flexible current probes
Comprehensive logging: More than 20 separate logging sessions can be stored on the instruments. In fact, all measured values are automatically logged so you never loose measurement trends. They can even be reviewed during logging sessions and before downloading for real-time analysis
Optimized user interface: Quick, guided, graphical setup ensures you’re capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
Bright, color touch screen: Perform convenient in-the-field analysis and data checks with full graphical display
Complete “in-the-field" setup through the front panel: No need to return to the workshop for download and setup or to take a computer to the electrical panel
Fully integrated logging: Connect other Fluke Connect devices to the Fluke 1734 to simultaneously log up to two other measurement parameters, virtually any parameter available on a Fluke Connect wireless digital multimeter or module*
Energy Analyze Plus application software: Download and analyze every detail of energy consumption with our automated reporting

*Not all models are available in all countries. Check with your local Fluke representative.

Which three-phase logger is right for you?

	Three-phase Energy Loggers		Three-phase Power Loggers
Features	1732 Energy Logger	1734 Energy Logger	1736 Power Logger	1738 Advanced Power Logger
Load studies	•	•	•	•
Energy assessments	•	•	•	•
Neutral Current, 4th current channel			•	•
Harmonics measurements			•	•
Voltage event capture			•	•
PQ Health Graphical overview (EN50160)			Upgrade package*	•
IEEE519 total harmonic distortion			Optional	Optional
Fully integrated logging with Fluke Connect®	Upgrade package*	•	Upgrade package*	•
WiFi	Optional	•	•	•
Wi-Fi / Bluetooth	Optional	•	Optional	•
Magnetic probe set	Optional	•	Optional	•
Magnetic hanger	Optional	•	Optional	•
Connection via WiFi router	Requires FREE software license available upon product registration.		Requires FREE software license available upon product registration.

*Upgrade packages are available to upgrade existing 1732 Energy Loggers with the same features of the 1734 Energy logger, and to upgrade existing 1736 Power Loggers with the same features and capabilities of the 1738 Advanced Power Logger. Please note that 1732 and 1734 Energy Loggers cannot be upgraded with the functionality of 1736 and 1738 Power Loggers.
Please ask your distributor for more information about the upgrade package.

Specifications: Fluke 1732 and 1734 Three Phase Power Measurement Logger

Specifications
Accuracy
Parameter		Range	Resolution	Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale)
Voltage		1000 V	0.1 V	±(0.2% + 0.01%)
Current: Direct input	i17xx-flex 1500 12"	150 A	0.1 A	±(1% + 0.02%)
		1500 A	1 A	±(1% + 0.02%)
	i17xx-flex 3000 24"	300 A	1 A	±(1% + 0.03%)
		3000 A	10 A	±(1% + 0.03%)
	i17xx-flex 6000 36"	600 A	1 A	±(1.5% + 0.03%)
		6000 A	10 A	±(1.5% + 0.03%)
	i40s-EL clamp	4 A	1 mA	±(0.7% + 0.02%)
		40 A	10 mA	±(0.7% + 0.02%)
Frequency		42.5 Hz to 69 Hz	0.01 Hz	±(0.1%)
Auxillary input		±10 V dc	0.1 mV	±(0.2% + 0.02%)
Voltage min/max		1000 V	0.1 V	±(1% + 0.1%)
Current min/max		Defined by accessory	Defined by accessory	±(5% + 0.2%)
THD on voltage		1000%	0.1%	±0.5
THD on current		1000%	0.1%	±0.5
Intrinsic Uncertainty ±(% of reading +% of range)¹
Parameter	Influence quantity	iFlex1500-12	iFlex3000-24	iFlex6000-36	i40S-EL
		150 A / 1500 A	300 A / 3000 A	600 A / 6000 A	4 A / 40 A
Active Power P	PF ≥ 0.99	1.2% + 0.005%	1.2% + 0.0075%	1.7% + 0.0075%	1.2% + 0.005%
Active Energy Ea	PF ≥ 0.99	1.2% + 0.005%	1.2% + 0.0075%	1.7% + 0.0075%	1.2% + 0.005%
Apparent power S	0 ≤ PF ≤ 1	1.2% + 0.005%	1.2% + 0.0075%	1.7% + 0.0075%	1.2% + 0.005%
Apparent Energy Eap	0 ≤ PF ≤ 1	1.2% + 0.005%	1.2% + 0.0075%	1.7% + 0.0075%	1.2% + 0.005%
Reactive power Q	0 ≤ PF ≤ 1	2.5% of measured apparent power
Reactive Energy Er	0 ≤ PF ≤ 1	2.5% of measured apparent power
Power Factor PF	-	±0.025
Displacement Power Factor	-	±0.025
DBF/cosϕ	-	±0.025
Additional uncertainty in% of range¹	VP-N>250 V	0.015%	0.0225%	0.0225%	0.015%
¹Range = 1000 V x Irange Reference conditions: Environmental: 23 °C ±5 °C, instrument operating for at least 30 minutes, no external electrical/magnetic field, RH <65% Input conditions: Cosϕ/PF=1, Sinusoidal signal f=50 Hz/60 Hz, power supply 120 V/230 V ±10%. Current and power specifications: Input voltage 1 ph: 120 V/230 V or 3 ph wye/delta: 230 V/400 V Input current: I > 10% of Irange Primary conductor of clamps or Rogowski coil in center position Temperature coefficient: Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C

Electrical Specifications
Power Supply
Voltage range	100 V to 500 V using safety plug input when powering from the measurement circuit
Voltage range	100 V to 240 V using standard power cord (IEC 60320 C7)
Power consumption	Maximum 50 VA (max. 15 VA when powered using IEC 60320 input)
Efficiency	≥ 68.2% (in accordance with energy efficiency regulations)
Maximum no-load consumption	< 0.3 W only when powered using IEC 60320 input
Mains power frequency	50/60 Hz ±15%
Battery	Li-ion 3.7 V, 9.25 Wh, customer-replaceable
On-battery runtime	Four hours in standard operating mode, up to 5.5 hours in power saving mode
Charging time	< 6 hours
Data Acquisition
Resolution	16-bit synchronous sampling
Sampling frequency	10.24 kHz at 50/60 Hz, synchronized to mains frequency
Input signal frequency	50/60 Hz (42.5 to 69 Hz)
Circuit types	1-φ, 1-φ IT, Split phase, 3-φ delta, 3-φ wye, 3-φ wye IT, 3-φ wye balanced, 3-φ Aron/Blondel (2-element delta), 3-φ delta open leg, Currents only (load studies)
Data storage	Internal flash memory (not user replaceable)
Memory size	Typical 10 logging sessions of 8 weeks with 1-minute intervals and 500 events¹
¹The number of possible logging sessions and logging period depends on user requirements.
Basic Interval
Measured parameters	Voltage, current, aux, frequency, THD V, THD A, power, power factor, fundamental power, DPF, energy
Averaging interval	User selectable: 1 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min, 30 min
Averaging time min/max values	Voltage, Current: Full cycle RMS updated every half cycle Aux, Power: 200ms
Demand Interval (Energy Meter Mode)
Measured parameters	Energy (Wh, varh, VAh), PF, maximum demand, cost of energy
Interval	User selectable: 5 min, 10 min, 15 min, 20 min, 30 min, off
Standards Compliance
Power	IEEE 1459
Interfaces
USB-A	File transfer via USB flash drive, firmware updates Max. current: 120 mA
WiFi	File transfer and remote control via direct connection or WiFi infrastructure
Bluetooth	Read auxiliary measurement data from Fluke Connect® 3000 series modules (requires 1734, or 1732 upgrade option)
USB-mini	Data download device to PC
Voltage Inputs
Number of inputs	4 (3 phases and neutral)
Maximum input voltage	1000 Vrms, CF 1.7
Input impedance	10 MΩ
Bandwidth (-3 dB)	42.5 Hz - 3.5 kHz
Scaling	1:1 and variable
Measurement category	1000 V CAT III/600 V CAT IV
Current Inputs
Number of inputs	3, mode selected automatically for attached sensor
Input voltage	Clamp input: 500 mVrms/50 mVrms; CF 2.8
Rogowski coil input	150 mVrms/15 mVrms at 50 Hz, 180 mVrms/18 mVrms at 60 Hz; CF 4; all at nominal probe range
Range	1 A to 150 A/10 A to 1500 A with thin flexible current probe i17XX-flex1500 12"
	3 A to 300 A/30 A to 3000 A with thin flexible current probe i17XX-flex3000 24"
	6 A to 600 A/60 A to 6000 A with thin flexible current probe i17XX-flex6000 36"
	40 mA to 4 A/0.4 A to 40 A with 40 A clamp i40s-EL
Bandwidth (-3 dB)	42.5 Hz - 3.5 kHz
Scaling	1:1 and variable
Auxiliary Inputs
Number of inputs	2
Input range	0 to ±10 V dc, 1reading/s
Scale factor (available 2014)	Format: mx + b (gain and offset) user configurable
Displayed units (available 2014)	User configurable (7 characters, for example, °C, psi, or m/s)
Wireless Connection
Number of inputs	2
Supported modules	Fluke Connect® 3000 series
Acquisition	1 reading/s
Environmental Specifications
Operating temperature	-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature	-20 °C to +60 °C (-4 °F to 140 °F), with battery: -20 °C to +50 °C (-4 °F to 122 °F)
Operating humidity	10 °C to 30 °C (50 °F to 86 °F) max. 95% RH
	30 °C to 40 °C (86 °F to 104 °F) max. 75% RH
	40 °C to 50 °C (104 °F to 122 °F) max. 45% RH
Operating altitude	2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
Storage altitude	12,000m
Enclosure	IP50 in accordance with EN60529
Vibration	MIL-T-28800E, Type 3, Class III, Style B
Safety	IEC 61010-1
	IEC Mains Input: Overvoltage Category II, Pollution Degree 2
	Voltage Terminals: Overvoltage Category IV, Pollution Degree 2
	IEC 61010-2-031: CAT IV 600 V / CAT III 1000 V
Electromagnetic compatibility	EN 61326-1: Industrial CISPR 11: Group 1, Class A
	Korea (KCC): Class A Equipment (industrial broadcasting and communication equipment)
	USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103
Temperature coefficient	0.1 x accuracy specification/°C
General Specifications
Color LCD display	4.3-inch active matrix TFT, 480 pixels x 272 pixels, resistive touch panel
Warranty	Instrument and power supply: Two-years (battery not included)
	Accessories: one-year
	Calibration cycle: two-years
Dimensions	Instrument: 19.8 x 16.7 x 5.5 cm (7.8 x 6.6 x 2.2 in)
	Power supply: 13.0 x 13.0 x 4.5 cm (5.1 x 5.1 x 1.8 in)
	Instrument with power supply attached: 19.8 x 16.7 x 9 cm (7.8 x 6.6 x 3.5 in)
Weight	Instrument: 1.1 kg (2.5 lb)
Weight	Power supply: 400 g (0.9 lb)
Tamper protection	Kensington lock slot
i17xx-flex 1500 12" Flexible Current Probe Specifications
Measuring range	1 to 150 A ac/10 to 1500 A ac
Nondestructive current	100 kA (50/60 Hz)
Intrinsic error at reference condition*	±0.7% of reading
Accuracy 173x + iFlex	±(1% of reading + 0.02% of range)
Temperature coefficient over operating temperature range	0.05% of reading/°C 0.09% of reading/°F
Working voltage	1000 V CAT III, 600 V CAT IV
Probe cable length	305 mm (12 in)
Probe cable diameter	7.5 mm (0.3 in)
Minimum bending radius	38 mm (1.5 in)
Output cable length	2 m (6.6 ft)
Weight	115 g
Probe cable material	TPR
Coupling material	POM + ABS/PC
Output cable	TPR/PVC
Operating temperature	-20 °C to +70 °C (-4 °F to 158 °F) temperature of conductor under test shall not exceed 80 °C (176 °F)
Temperature, non-operating	-40 °C to +80 °C (-40 °F to 176 °F)
Relative humidity, operating	15% to 85% non-condensing
IP rating	IEC 60529:IP50
Warranty	One-year
* Reference condition: Environmental: 23 °C ±5 °C, no external electrical/magnetic field, RH 65% Primary conductor in center position
