FLUKE FLUKE-179 EJKCT TRMS MULTIMETER W/BACKLIGHT & TEMP (FLUKE-179) | EMINKH.COM

Product image

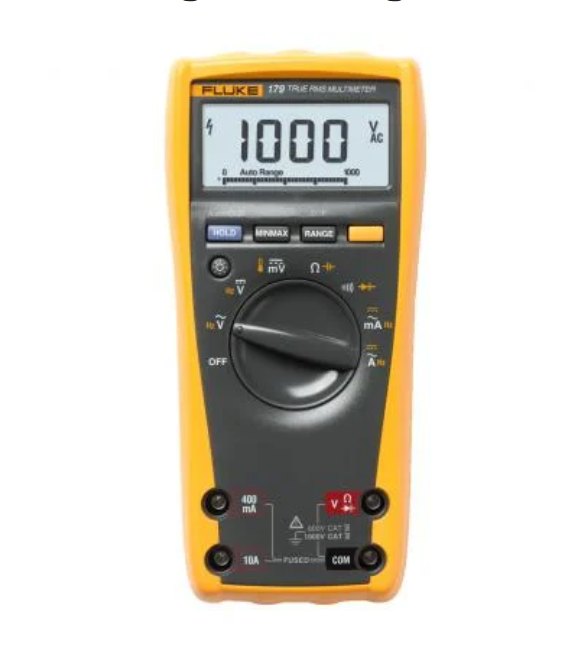

FLUKE FLUKE-179 EJKCT TRMS MULTIMETER W/BACKLIGHT & TEMP (FLUKE-179)

In Stock: 15 Unit

ManufacturerFLUKE(View more products from this manufacturer)

ModelFLUKE-179 EJKCT

P/N1592856

OriginUSA

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

DCV: 0.1 mV~ 1000 V /0.09%

ACV: 0.1 mV- 1000 V /1.0%

DCA: 0.01 mA~10 A /1.0%

ACA: 10 A /1.5%

R: 0.1 Ω~MΩ /0.9%

C: 1 nF~ 10,000 µF /1.2%

Hz: 100 kHz /0.1%

Temperature: -40°C/400°C /1.0%

Size: 43 x 90 x 185 mm

Weight : 420 g

include: 80BK Temperature Probe, Installed 9V battery,Test leads,Users manual

Specifications

Voltage DC

175 - Accuracy*	± (0.15%+2)
177 - Accuracy*	± (0.09%+2)
179 - Accuracy*	± (0.09%+2)
Max. Resolution	0.1 mV
Maximum	1000 V

Voltage AC

Accuracy*	± (1.0%+3)
Max. Resolution	0.1 mV
Maximum	1000 V

Current DC

Accuracy*	± (1.0%+3)
Max. Resolution	0.01 mA
Maximum	10 A

Current AC

Accuracy*	± (1.5%+3)
Max. Resolution	0.01 mA
Maximum	10 A

Resistance

Accuracy*	± (0.9%+1)
Max. Resolution	0.1 Ω
Maximum	50 MΩ

Capacitance

Accuracy*	± (1.2%+2)
Max. Resolution	1 nF
Maximum	10,000 µF

Frequency

Accuracy*	± (0.1%+1)
Max. Resolution	0.01 Hz
Maximum	100 kHz

Temperature

179 - Accuracy*	± (1.0%+10)
Max. Resolution	0.1°C
Range	-40°C/400°C

Note

*	Accuracies are best accuracies for each function

Environmental Specifications

Operating Temperature

-10°C to +50°C

Storage Temperature

-30°C to +60°C

Humidity (Without Condensation)

	0% - 90% (0°C - 35°C)
	0% - 70% (35°C -50°C)

Safety Specifications

Overvoltage category

	EN 61010-1 to 1000 V CAT III.
	EN 61010-1 to 600 V CAT IV.

Agency Approvals

UL, CSA, TÜV listed and VDE Pending

Mechanical & General Specifications

Size

43 x 90 x 185 mm

Weight

420 g

Warranty

Lifetime

Battery Life

Alkaline:

~200 hours typical, without backlight
