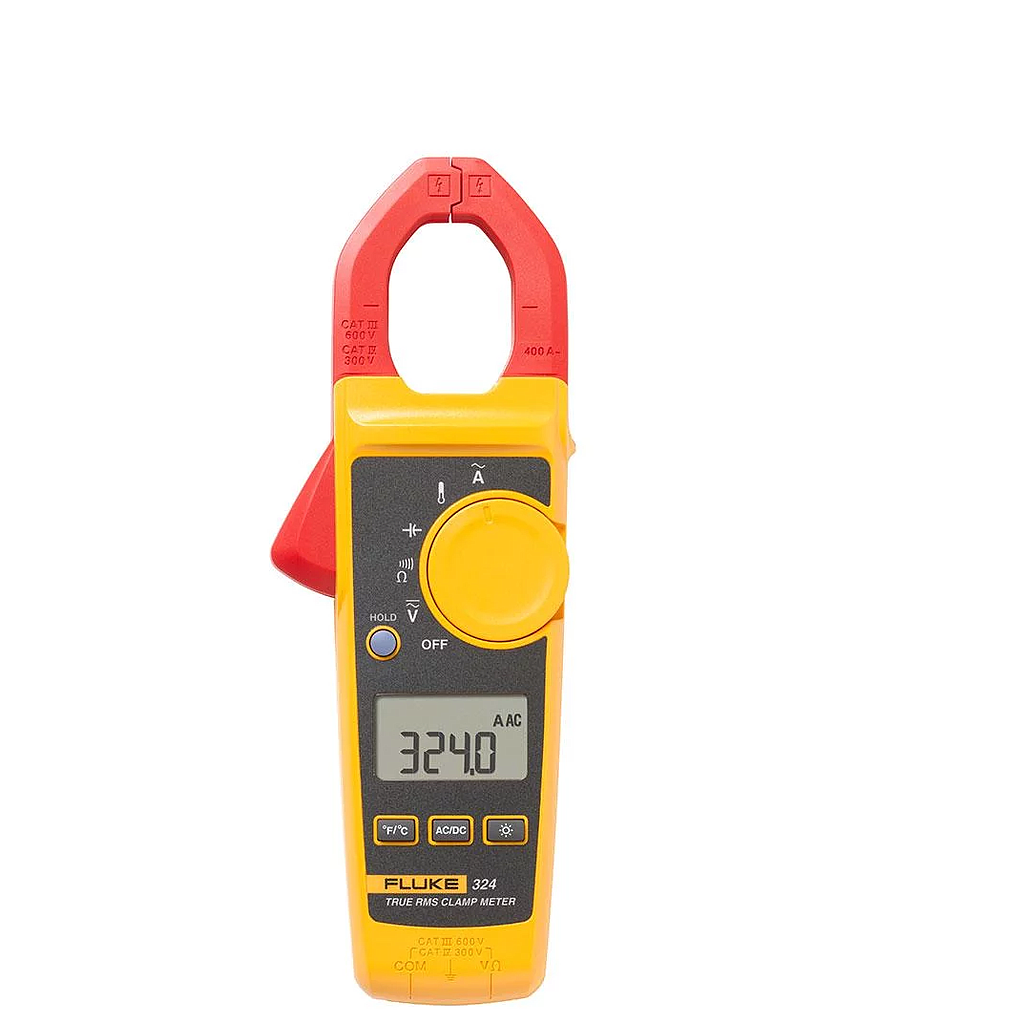

FLUKE Fluke 324 Clamp Meter (AC 400A; True RMS)

Name: FLUKE Fluke 324 Clamp Meter (AC 400A; True RMS)
Brand: FLUKE

ModelFluke 324

P/N5065853

OriginChina

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

ACA: 40.00A , 400.0 A /1.5 %

ACV: 600.0 V /1.5 %

DCV: 600.0 V /1.0 %

R: 400.0 Ω/ 4000 Ω /1.0 %

C: 100.0 μF to 1000 μF

Temperature: -10.0 °C to 400.0 °C

Continuity: 70 Ω

AC response: True-rms

Data hold: Yes

Size: H x W x D (mm): 207 x 75 x 34

Max wire diameter: 30 mm

Weight: 208 g

Includes: Test leads, Soft case, manual

Specifications
		323	324	325
AC current	Range	400.0 A	40.00 A/400.0 A	40.00 A/400.0 A
AC current	Accuracy	2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz)	1.5 % ± 5 digits (45 Hz to 400 Hz) Note: Add 2 % for position sensitivity	2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz)
DC current	Range	-	-	40.00 A/400.0 A
DC current	Accuracy	-	-	2 % ± 5 digits
AC voltage	Range	600.0 V	600.0 V	600.0 V
AC voltage	Accuracy	1.5 % ± 5 digits	1.5 % ± 5 digits	1.5 % ± 5 digits
DC voltage	Range	600.0 V	600.0 V	600.0 V
DC voltage	Accuracy	1.0 % ± 5 digits	1.0 % ± 5 digits	1.0 % ± 5 digits
Resistance	Range	400.0 Ω/ 4000 Ω	400.0 Ω/ 4000 Ω	400.0 Ω/ 4000 Ω/ 40.00 kΩ
Resistance	Accuracy	1.0 % ± 5 digits	1.0 % ± 5 digits	1.0 % ± 5 digits
Continuity		≤ 70 Ω	≤ 30 Ω	≤ 30 Ω
Capacitance		-	100.0 μF to 1000 μF	100.0 μF to 1000 μF
Frequency		-	-	5.0 Hz to 500.0 Hz
AC response		True-rms	True-rms	True-rms
Backlight		-	Yes	Yes
Data hold		Yes	Yes	Yes
Contact temperature		-	-10.0 °C to 400.0 °C (14.0 °F to 752.0 °F)	-10.0 °C to 400.0 °C (14.0 °F to 752.0 °F)
Min/Max		-	-	Yes
Size	H x W x D (mm)	207 x 75 x 34	207 x 75 x 34	207 x 75 x 34
	Max wire diameter	30 mm (600 MCM)	30 mm (600 MCM)	30 mm (600 MCM)
	Weight	265 g	208 g	283 g
Category rating		CAT III 600 V CAT IV 300 V	CAT III 600 V CAT IV 300 V	CAT III 600 V CAT IV 300 V
