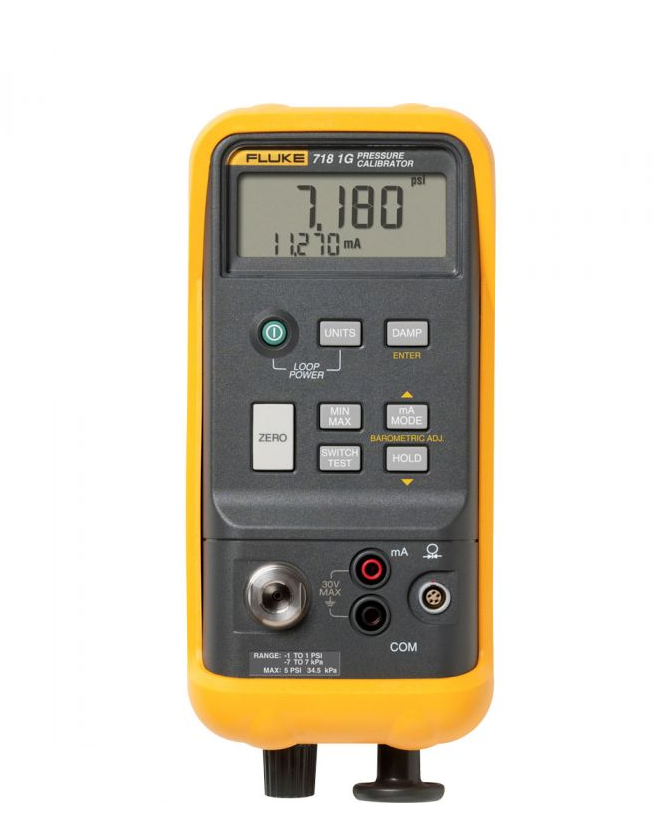

FLUKE FLUKE-718 1G/APAC Pressure Calibrators

Name: FLUKE FLUKE-718 1G/APAC Pressure Calibrators
Brand: FLUKE

ManufacturerFLUKE(View more products from this manufacturer)

ModelFLUKE-718 1G/APAC

P/N6098135

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Measure pressure via a 1/8-inch NPT Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device

Integrated pump

Measure Pressure: (internal sensor)

Accuracy: 0.025% full scale

Note: Dry air, non-corrosives only

Range: -1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)

Resolution: 0.0001 psi, 0.001 mbar, 0.0001 kPa

Over Pressure: 5x Full Scale

Functions: zero, min/max, hold, damp

Maximum voltage: 30 volts: Non-operating

Size: 216 mm x 94 mm x 66 mm

Weight : 992 g

Power: 9V battery

Display: LCD, 5 digit

include:

Protective Yellow Holster with test lead storage

Instructions Sheet (14 languages)

Test Leads and Alligator Clip

Two 9V alkaline batteries

NIST - Traceable calibration report and data

Datasheet

Manual

Technical Specifications

Standard

718 Series
Measure Pressure	(internal sensor)
Accuracy	0.025% full scale
Functions	zero, min/max, hold, damp
Note:	Dry air, non-corrosives only

718 1G
Range:	-1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)
Resolution:	0.0001 psi, 0.001 mbar, 0.0001 kPa
Over Pressure:	5x Full Scale
Functions:	Zero, Min, Max, Hold, Damp

718 30G
Range:	-12 PSI to 30 PSI, (-850 mbar to 2 bar, -85 to 206.84 kPa)
Resolution:	0.001 psi, 0.1 mbar, 0.01 kPa
Over Pressure:	5x Full Scale
Functions:	Zero, Min, Max, Hold, Damp

718 100G
Range:	-12 PSI to 100 PSI, (-850 mbar to 7 bar, -85 to 689.48 kPa)
Resolution:	0.01 psi, 0.1 mbar, 0.01 kPa
Over Pressure:	2x Full Scale
Functions:	Zero, Min, Max, Hold, Damp

718 300G
Range:	-12 PSI to 300 PSI, (-850 mbar to 20 bar, -85 to 2068.42 kPa )
Resolution:	0.01 psi, 1 mbar, 0.1 kPa
Over Pressure:	375 PSI 25 bar
Functions:	Zero, Min, Max, Hold, Damp

Fluke 718 series via using 700 Series Pressure Modules

Range:	29 pressure modules, 0 – 1 in H20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs
Resolution:	Per pressure module specs
Accuracy:	To 0.025 % of full span, per pressure module specs
Functions:	Zero, Min, Max, Hold, Damp
	Note: media compatibility per pressure module specs

Fluke 718 series via built in pump

Range:	-12 PSI or -850 mbar to full scale Supported Pressure Units; psi, in H20 (4 °C), in H20 (20 °C), cm H20 (4 °C), cm H20 (20 °C), bar, mbar, kPa, inHg, mmHg, kg/cm
Loop Power:	Range: 24 V dc
	Accuracy: +/- 10 %
	Note: Drive; 20 mA into 1000 Ω for battery > 6.8V; 700 Ω for battery 5.8 to 6.8 V
mA Measure:	Range: 0 mA to 24 mA
	Resolution: 0.001 mA
	Accuracy: 0.015 % + 1 count

General Specifications

Maximum voltage

30 volts: Non-operating

Temperature

-40 °C to 60 °C

Operating Temperature

-10 °C to 55° C

Relative Humidity

95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C); 45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C)

Operating Altitude

3,000 M max

Shock

1 M drop test

Vibration

Random, 2 g, 5 Hz – 500 Hz

Safety

CSA C22.2 No. 1010.1: 1992

EMC

EN50082-1: 1992 and EN55022: 1994 Class B

Size

216 mm x 94 mm x 66 mm (8.50 in x 3.72 in x 2.60 in)

Weight

992 g (35 oz)

Power, battery life

9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718

Battery Life

4 to 20 hours typical, depending on functions used

Option

Clips
AC220   AC220 SureGrip™ Alligator Clips

Test Probes
TP220   TP220 SureGrip™ Industrial Test Probes

Differential Pressure Modules
700P00   700P00 Differential Pressure Module
700P01   700P01 Differential Pressure Module
700P02   700P02 Differential Pressure Module
700P03   700P03 Differential Pressure Module
700P04   700P04 Differential Pressure Module

Pumps and Accessories
700PMP   700 PMP Pressure Pump
700HTH-1   Fluke 700HTH-1 Hydraulic Test Hose
700ILF   Fluke 700ILF In-line Filter
700PRV-1   Fluke 700PRV-1 Pressure Relief Valve Kit
700PTP-1   Fluke 700PTP-1 Pneumatic Test Pump
700HTP-2   Fluke 700HTP-2 Hydraulic Test Pump

Differential Pressure Module Wet
700P22   700P22 Differential Pressure Module Wet
700P23   700P23 Differential Pressure Module Wet
700P24   700P24 Differential Pressure Module Wet

Absolute Pressure Modules
700PA3   700PA3 Absolute Pressure Module
700PA4   700PA4 Absolute Pressure Module
700PA5   700PA5 Absolute Pressure Module
700PA6   700PA6 Absolute Pressure Module
700PRV   700PRV Pressure Relief Valve Kit

Cases and Holsters
C101   C101 Hard Case
C550   C550 Tool Bag
C789   C789 Meter & Accessory Case
CXT170   CXT170 Extreme Case

Dual Pressure Modules
700PD2   700PD2 Dual Pressure Module
700PD3   700PD3 Dual Pressure Module
700PD4   700PD4 Dual Pressure Module
700PD5   700PD5 Dual Pressure Module
700PD6   700PD6 Dual Pressure Module
700PD7   700PD7 Dual Pressure Module

Vacuum Pressure Modules
700PV3   700PV3 Vacuum Pressure Module
700PV4   700PV4 Vacuum Pressure Module

Test Leads
TL220   TL220 SureGrip™ Industrial Test Lead Kit
TL221   TL221 SureGripTM Test Lead Extension Kit
TL223   TL223 Electrical Test Lead Set
TL224   TL224 SureGripTM Insulated Test Leads
TL71   TL71 Premium Test Lead Set
TL75   TL75 Hard Point™ Test Lead Set
