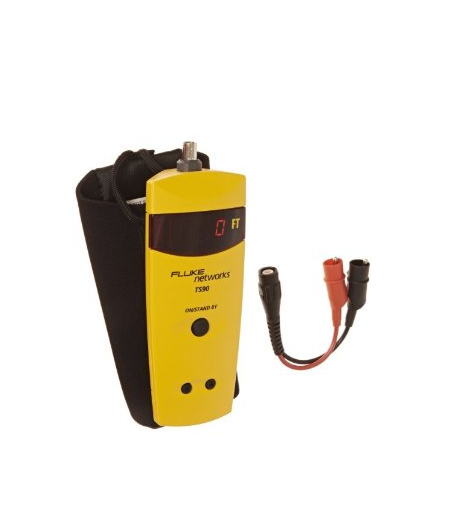

Fluke Network TS90 Cable fault finder
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Features:
-Works on any two or more conductor cable up to 2,500 feet (762 meters)
-Instantly measures distance to open or any fault from one end of any cable pair
-Patented SmartTone® tone generator positively identifies pair
-Measures cable distance on spool
-Measures constantly while on
-Displays distance reading rather than waveform
-Large LED screen
-High voltage detection
-Moisture proof
-One-button operation
-Additional line cord options available for coaxial cable (F-connectors) and other applications
Specifications:
-Cable Type:Virtually all two or more conductor cables
-Representative Maximum Cable Length:2500 feet: CAT-5 Twisted Pair
2000 feet: 12/2 ac Wire,1000 feet: RG-6/U TV Coax,500 feet (150 meters): RG-174/U Coax
-Accuracy:±3 %
-VOP:Adjustable from 20 to 99, retained during power off. Default to 66 when batteries are changed.
-High Voltage Detection:An ac voltage of more than 5 V rms will trigger the High Voltage Warning.
-Measurement Technology:Time Domain Reflectometry (TDR) with 50 Ohm drive impedance, 6 V maximum pulse height.
-Impedance Range:35 Ohm to 330 Ohm with auto-compensation within this range
-Power of operation:4 AA alkaline batteries, provide 50 hours
-Certifications and Compliance:CAN/CSA-C22.2 No. 60950-1-03 CAN/CSA-C22.2 No.
1010.1-92 CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1
Option:
26501100:TS100/TS90 line cord, BNC to alligator clip
26501160:TS100/TS90 pouch with belt clip
26501200:TS100/TS90 linecord, BNC to F(MALE)
26501300:TS100/TS90 linecord, BNC to F(FEMALE)
26501700:TS100/TS90 linecord, BNC to banana to ABN
26501600:TS100/TS90 linecord, banana
