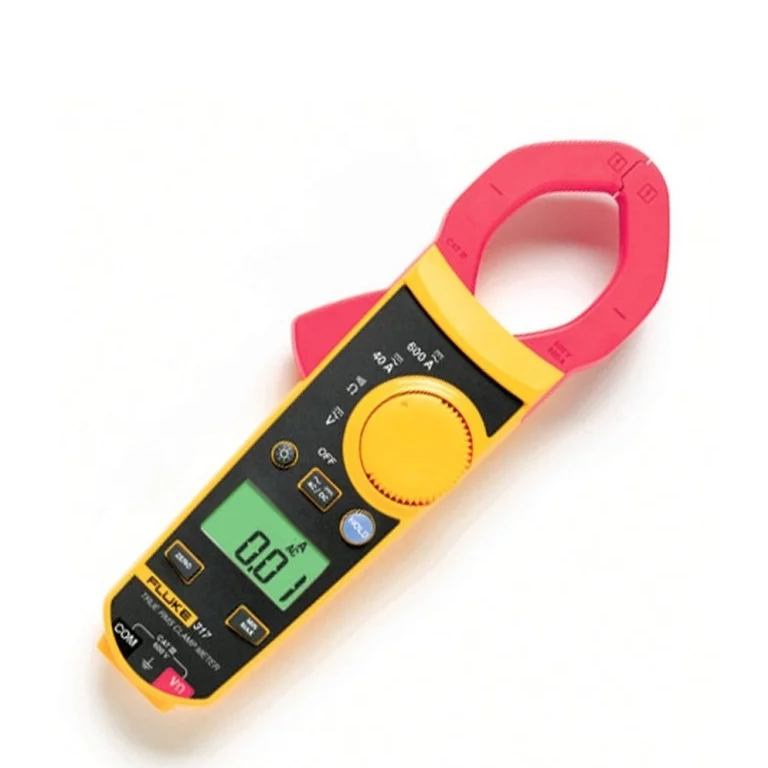

FLUKE 317 Clamp Meters (AC/DC 600A)

Name: FLUKE 317 Clamp Meters (AC/DC 600A)
Brand: FLUKE

In Stock: 5 Unit

ManufacturerFLUKE(View more products from this manufacturer)

Model317

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

ACA: 40.00 A, 600.0 A /1.5% ± 5 digit

ACA: 40.00 A, 600.0 A /1.5% ± 5 digit)

ACV: 600.0 V /1.5% ± 5 digit

DCV: 600.0 V /1% ± 4 digit

R: 400.0 Ω, 4000 Ω /1% ± 5 digit

Continuity:≤ 30 Ω

Digital Display:6000 count resolution

Power Source: Three AAA IEC LR03 batteries

Clamp Opening Size:1. 45 in (37 mm)

Dimensions (L x W x H): 162.4 mm x 58.25 mm x 30.5 mm

Weight: 384 g

Include:Test Leads, Soft Carrying Case, Three AAA batteries (Installed),User Manual

General Specifications

Digital Display

6000 count resolution

Low Battery Indication

Displays a signal when the batteries are below their required voltage

Power Source

Three AAA IEC LR03 batteries

Clamp Opening Size

1.45 in (37 mm)

Jaw Diameter

1.45 in (37 mm)

Dimensions (L x W x H)

	6.39 in x 2.29 in x 1.20 in
	(162.4 mm x 58.25 mm x 30.5 mm)

Weight

approximately 13.5 oz (384 g) (batteries included)

Auto Range

Available in Ohms

Safety

	CE
	EN/IEC 61010-1 and IEC 61010-2-032
	Measurement Category: 600V CAT III

317 Electrical Specifications

Current AC

Range	40.00 A, 600.0 A
Resolution	0.01 A, 0.1 A
Accuracy	1.6% ± 6 digit (50-60 Hz) {40 A}
	2.5% ± 8 digit (60-500 Hz) {40 A}
	1.5% ± 5 digit (50-60 Hz) {600 A}
	2.5% ± 5 digit (60-500 Hz) {600 A}
Crest Factor add 2% into spec for CF > 2	3.0 Max @ 500 A, 2.5 Max @ 600 A
AC response	rms

Current DC

Range	40.00 A, 600.0 A
Resolution	0.01 A, 0.1 A
Accuracy	1.6% ± 6 digit (40 A)
	1.5% ± 5 digit (600 A)

Voltage AC

Range	600.0 V
Resolution	0.1 V
Accuracy	1.5% ± 5 digit (20-500Hz)
AC response	rms

Voltage DC

Range	600.0 V
Resolution	0.1 V
Accuracy	1% ± 4 digit

Resistance

Range	400.0 Ω, 4000 Ω
Resolution	0.1 Ω, 1 Ω
Accuracy	1% ± 5 digit

Continuity

≤ 30 Ω

Inrush

Integration time

N/A

Frequency

Range	N/A
Accuracy	N/A
Trigger Level	N/A
