- Key features:
Infrared resolution: 384x288 (110,592 pixels)
IFOV: 1.91 mRad
Field of view: 42°x30°
Minimum focus distance: 0.15m
Focus system: Manual focus
Wireless connectivity: Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi and LAN (where available)
Fluke Connect app compatible: Yes
Fluke Connect Assets optional software: Yes
IR-Fusion technology: AutoBlend continuous 0 % to 100 %.
Picture-InPicture (PIP): Yes
Display: 3.5" (8.9 cm landscape) touchscreen 640x480 LCD
Thermal sensitivity: 40mk
Level and span: Smooth auto and manual scaling
Fast auto-rescale in manual mode: Yes
Minimum span (in manual mode): 3°C (4.5°F)
Minimum span (In auto mode): 5°C (9.0°F)
Built-in digital camera (visible light): 640x480
Frame rate: 9Hz
- Data storage and image capture:
Internal memory: ∼500 images
External memory: ≥4 GB SD card (>1000 images)
Image file formats: Non-radiometric BMP or JPEG or fully-radiometric is2
Memory review: Yes
Software: Fluke Connect software—full analysis and reporting software with access to the Fluke Connect
Analyze and store radiometric data on a PC: Yes
Export file formats with Fluke Connect software: is2, BMP, GIF, JPEG, PNG, TIFF
- Battery:
Batteries (field-replaceable, rechargeable): Lithium-ion rechargeable battery
Battery life: ≥3.5 hours continuous without WiFi (Actual life depends on settings and usage)
Battery charging time: ≤2.5 hours to full charge
Battery charging system: Ti SBC3B Two-Bay Battery Charger or in-Imager charging.
AC operation: AC operation with included power supply, universal adapters included Output: 15 VDC, 2 A
Power saving: User-selectable sleep and power off
- Temperature measurement:
Temperature range (not calibrated below -10°C): -20°C to 550°C (not calibrated below -10°C)
Accuracy: ±2°C or 2% (whichever is greater) at 25°C ambient temperature
Color palettes
Standard palettes: 6
- General specifications:
Color alarms: Yes.
Infrared spectral band: ~8-14μm
Operating temperature: -10°C to 50°C (14°F to 122°F)
Storage temperature: -20°C to 50°C (-4°F to 122°F) without batteries
Relative humidity: 10 % to 95 % non-condensing
Safety standards: IEC 61010-1: Pollution Degree 2
Electromagnetic combability: IEC 61326-1: Portable Electromagnetic Environment;
IEC 61326-2-2 CISPR 11: Group 1, Class A
Australian RCM: RCM IEC 61326-1
US FCC: 47 CFR 15 Subpart C Sections 15.207, 15.209, 15.249
Vibration: 10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6
Shock: 30 g, 11 ms, IEC 60068-2-27
Drop: Engineered to withstand 2m drop
Sized (H x W x L): ∼(26.7 cm x 10.1 cm x 14.5 cm) ∼ (10.5 in x 4.0 in x 5.7 in)
Weight (battery included): 0.885 kg (1.95 lbs)
Enclosure rating: IP54
Includes:

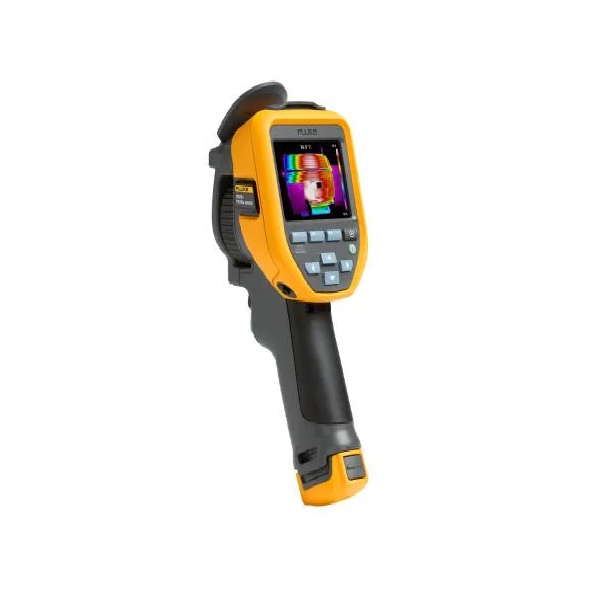

Thermal imager Fluke TiS75+ Thermal Camera 9HZ
AC power supply (including universal AC adapters)
Two-bay smart battery charger
Two rugged lithium ion smart batteries
USB cable
4 GB micro SD card
Rugged hard carrying case with soft transport bag and adjustable hand strap
Available by free download: Fluke Connect™ software and user manual
Manual
Datasheet
Take your plan for a proactive maintenance (PM) program and turn it into reality. To get started, you need features that make it easy to set up your image organization and inspection routines. With the TiS75+ you’re well on your way to implementing a successful PM program.
This new Fluke thermal camera stays true to our mantra of giving the customer more than they paid for. The Fluke TiS75+ offers features to help you tackle almost anything you’ll face in the field. In addition to the features noted above, the TiS75+ also includes:
| Key Features | TiS75+ |
| Infrared resolution | 384 x 288 (110,592 pixels) |
| IFOV | 1.91 mRad |
| Field of view | 42° x 30° |
| Minimum focus distance | 0.15 m |
| Focus system | Manual focus |
| Wireless connectivity | Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi and LAN (where available) |
| Fluke Connect app compatible | Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect Assets optional software | Yes*, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location |
| Asset Tagging | Scan a QR code to automatically organize and file thermal images with Fluke Connect™ |
| IR-Fusion technology | AutoBlend continuous 0 % to 100 %. Adds the context of the visible details to your infrared image |
| Picture-InPicture (PIP) | Yes |
| Display | 3.5" (8.9 cm landscape) touchscreen 640 x 480 LCD |
| Ergonomic design | Designed for one-handed use |
| Thermal sensitivity | 40mk |
| Level and span | Smooth auto and manual scaling |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 3° °C (4.5 °F) |
| Minimum span (In auto mode) | 5°C (9.0 °F) |
| Built-in digital camera (visible light) | 640 x 480 |
| Frame rate | 9 Hz or 27 Hz models |
| Dew point calculation | Yes |
| Data storage and image capture | |
| Internal memory | ∼500 images |
| External memory | ≥4 GB SD card (>1000 images) |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability |
| Image file formats | Non-radiometric BMP or JPEG or fully-radiometric is2 |
| Memory review | Yes |
| Software | Fluke Connect software—full analysis and reporting software with access to the Fluke Connect |
| Analyze and store radiometric data on a PC | Yes |
| Export file formats with Fluke Connect software | is2, BMP, GIF, JPEG, PNG, TIFF |
| Voice annotation | Yes, 60 second maximum audio recording via Bluetooth Audio Headset Profile (HSP) connection to external device. |
| IR-PhotoNotes | Yes. Up to 3 extra user-selectable visible light image capture to be included in IS2 file. |
| Text annotations | After IS2 capture, user can type in a note using on-screen keyboard. |
| Video recording and formats | Standard and radiometric video. Up to 5 minute recording length. avi and is3 |
| Remote control operations | No |
| Auto capture (temperature and interval) | Yes. User-selectable time interval for capturing IS2 or Jpeg files. |
| Battery | |
| Batteries (field-replaceable, rechargeable) | Lithium-ion rechargeable battery |
| Battery life | ≥3.5 hours continuous without WiFi (Actual life depends on settings and usage) |
| Battery charging time | ≤2.5 hours to full charge |
| Battery charging system | Ti SBC3B Two-Bay Battery Charger or in-Imager charging. |
| AC operation | AC operation with included power supply, universal adapters included Output: 15 VDC, 2 A |
| Power saving | User-selectable sleep and power off |
| Temperature measurement | |
| Temperature range (not calibrated below -10 °C) | -20 °C to 550°C (not calibrated below -10 °C) |
| Accuracy | ±2 °C or 2 % (whichever is greater) at 25 °C ambient temperature |
| On-screen emissivity correction | Yes, “top ten” material list plus numerical adjustment between 0.01 and 1.00 |
| Color palettes | |
| Standard palettes | 6 |
| General specifications | |
| Color alarms | Yes. User-selectable hot and cold point and internal/external range color alarms. Modifies palettization of IR image by limiting which pixels are drawn using palette colors based on the pixel temperature. |
| Infrared spectral band | ~8-14μm |
| Operating temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to 50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10 % to 95 % non-condensing |
| Spot temperature | Center spot (unmovable) |
| User-definable spot markers | Yes, 5 user-adjustable spot markers for a single pixel each. Position is adjustable. Temperature value for marker shown on screen. User can choose to switch display on/off for each marker. |
| User defined measurement boxes | Yes, 5 user-adjustable rectangles. Size and position are adjustable. Rectangle statistics shown on screen: Min, Max, Average temperature. User can choose to switch display on/off for each marker. |
| Hard case | Rugged hard carrying case with soft transport bag, including adjustable strap |
| Safety standards | IEC 61010-1: Pollution Degree 2 |
| Electromagnetic combability | IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A |
| Australian RCM | RCM IEC 61326-1 |
| US FCC | 47 CFR 15 Subpart C Sections 15.207, 15.209, 15.249 |
| Vibration | 10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6 |
| Shock | 30 g, 11 ms, IEC 60068-2-27 |
| Drop | Engineered to withstand 2m drop |
| Sized (H x W x L) | ∼(26.7 cm x 10.1 cm x 14.5 cm) ∼ (10.5 in x 4.0 in x 5.7 in) |
| Weight (battery included) | 0.885 kg (1.95 lbs) |
| Enclosure rating | IP54 |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
| RoHS compliant | Yes |
