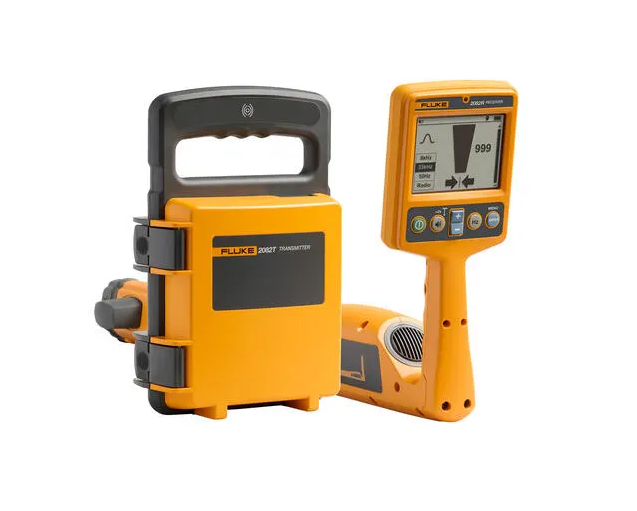

FLUKE FLUKE-2082 Core Underground Utility Locator Kit

Maximum voltage between any terminal and earth ground: 600 V

Operating temperature: -20 °C to 50 °C (-4 °F to 122 °F)

Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)

Humidity (non-condensing): 0–90% (5–30 °C), 0–75% (30–40 °C), 0–45% (40–50 °C)

Altitude: ≤ 2000 m (≤ 6561 ft)

Ingress protection: IP54 (non-operating)

Pollution degree: 2 (IEC 61010-1)

Electromagnetic Compatibility (EMC)

International: IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2; CISPR 11: Group 1, Class A

2082T Transmitter

Power supply: 8 × D cells (IEC LR20)

Fuse protection: 0.5 A, 1000 V, IR 30 kA, Φ6.3 × 32 mm, Fast

Safety compliance: IEC 61010-2-030: CAT IV 600 V

2082R Receiver

Power supply: 6 AA, IEC LR6

Safety compliance: IEC 61010-2-030: CAT IV 600 V

AF2082 A-Frame (optional accessory)

Power supply: 6 AA, IEC LR6

SC2082 Signal Clamp (optional accessory)

Safety compliance: IEC 61010-2-032: CAT IV 600 V, 100 A

TL2082 Test Lead Set

Safety compliance: IEC 61010-031: CAT IV 600 V, 10 A
