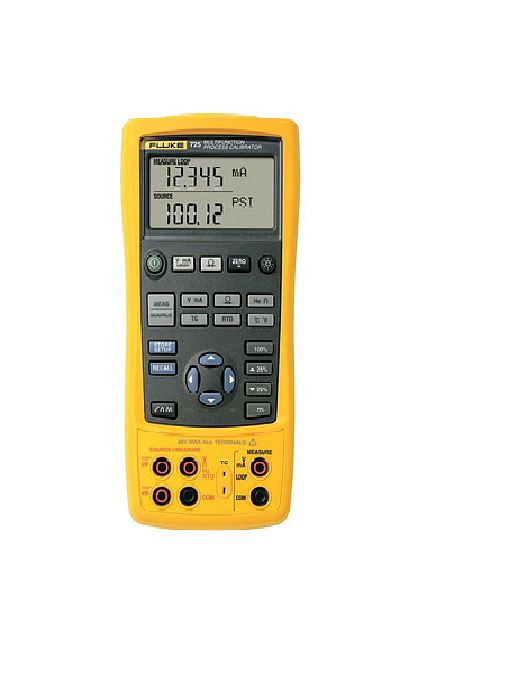

Name: FLUKE FLUKE-725/APAC/EMEA Multifunction Process Calibrator (Measure and simulate current, voltage, temperature, pressure)
Brand: FLUKE
Availability: InStock

FLUKE FLUKE-725/APAC/EMEA Multifunction Process Calibrator (Measure and simulate current, voltage, temperature, pressure) | EMINKH.COM

Measurement Accuracy
Voltage DC
30.000 V	0.02%+ 2 counts (upper display)
30.000 V	0.02%+ 2 counts (lower display)
100.00 mV	0.02%+ 2 counts
-10.00 mV to 75.00 mV	0.025 % + 1 count (via TC connector)
Current DC
24.000 mA:	0.02%+ 2 counts
Resistance
0.0 to 400.0 Ω	0.1Ω (4-wire), 0.15Ω (2- and 3-wire)
401 to 1500 Ω	0.5Ω (4-wire), 1Ω (2- and 3-wire)
1500 to 3200 Ω	1Ω (4-wire), 1.5Ω (2- and 3-wire)
Frequency
2.0 to 1000.0 CPM	0.05 % + 1 count
1.0 to 1100.0 Hz	0.05 % + 1 count
1.00 to 10.00 kHz	0.05 % + 1 count
Sensitivity	1 V peak-to-peak-minimum
Pressure
Accuracy	from 0.025% of range using any of 8 intrinsic safe pressure modules. (for detailed specifications refer to pressure modules in options and accessories) Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC
100.00 mV	0.02%+2 counts
10.000 V	0.02%+2 counts
-10.00 mV to 75.00 mV	0.025 % + 1 count (via TC connector)
Current DC
24.000 mA (Source)	0.02%+ 2 counts
24.000 mA (Simulate)	0.02%+ 2 counts
Resistance
15.0 to 400.0 Ω	0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
401 to 1500 Ω	0.5 Ω(excitation current 0.05 to 0.8 mA)
1500 to 3200 Ω	1 Ω(excitation current 0.05 to 0.4 mA)
Frequency
2.0 to 1000.0 CPM	0.05%
1.0 to 1100.0 Hz	0.05%
1.00 to 10.00 kHz	0.25%
Waveform:	5 V p-p squarewave, -0.1 V offset
RTDs and Thermocouples
Measure Accuracy:
NI-120 PT-100 (385) PT-100 (393) PT-100 (JIS) PT-200 (385) PT-500 (385) PT-1000 (385) Resolution: J: K: T: E: R: S: B: L: U: N: Resolution XK BP	0.2 °C 0.33 °C 0.3 °C 0.3 °C 0.2 °C 0.3 °C 0.2 °C 0.1 °C 0.7 °C 0.8 °C 0.8 °C 0.7 °C 1.8 °C 1.5 °C 1.4 °C 0.7 °C 0.75 °C 0.9 °C J, K, T, E, L, N, U: 0.1 °C, 0.1 °F B, R, S: 1 °C, 1 °F 0.6°C 1.2°C
Source Accuracy:
NI-120 PT-100 (385) PT-100 (393) PT-100 (JIS) PT-200 (385) PT-500 (385) PT-1000 (385) Resolution: Note: J: K: T: E: R: S: B: L: U: N: Resolution Resolution BP	0.2 °C 0.33 °C 0.3 °C 0.3 °C 0.2 °C 0.3 °C 0.2 °C 0.1 °C Accuracy stated for 4-wire measurement. 0.7 °C 0.8 °C 0.8 °C 0.7 °C 1.4 °C 1.5 °C 1.4 °C 0.7 °C 0.75 °C 0.9 °C J, K, T, E, L, N, U: 0.1 °C, B, R, S: 1 °C 0.6°C 1.2°C
Specifications
Ramp Functions
Source functions:	Voltage, current, resistance, frequency, temperature
Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop Power Function
Voltage:	24 V
Accuracy:	10%
Maximum current:	22 mA, short circuit protected
Step Functions
Source functions:	Voltage, current, resistance, frequency, temperature
Steps	25% of range, 100% of range
Environmental Specifications
Operating Temperature	-10 °C to +55 °C
Storage Temperature	-20 °C to 71 °C
Operating Altitude	3000 m
Safety Specifications
Agency Approvals	EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992
Mechanical & General Specifications
Size	130 x 236 x 61 mm
Weight	0.65 kg
Batteries	4 AA alkaline batteries
Battery Replacement	Separate battery compartment, accessable without breaking calibration seal
Side port connections	Pressure module connector, also used for remote real-time programming

DATASHEET

Specifications: Fluke 725 Multifunction Process Calibrator

Measurement Accuracy
Voltage DC	30.000 V	0.02% + 2 counts (upper display)
	30.000 V	0.02% + 2 counts (lower display)
	100.00 mV	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA	0.02% + 2 counts
Resistance	0.0 to 400.0 Ω	0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)
	401 to 1500 Ω	0.5 Ω (4-wire), 1 Ω (2- and 3-wire)
	1500 to 3200 Ω	1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Frequency	2.0 to 1000.0 CPM	0.05% + 1 count
	1.0 to 1100.0 Hz	0.05% + 1 count
	1.00 to 10.00 kHz	0.05% + 1 count
	Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of 29 pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC	100.00 mV	0.02% + 2 counts
	10.000 V	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA (source)	0.02% + 2 counts
Current DC	24.000 mA (simulate)	0.02% + 2 counts
Resistance	15.0 to 400.0 Ω	0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
	401 to 1500 Ω	0.5 Ω (excitation current 0.05 to 0.8 mA)
	1500 to 3200 Ω	1 Ω (excitation current 0.05 to 0.4 mA)
Frequency	2.0 to 1000.0 CPM	0.05%
	1.0 to 1100.0 Hz	0.05%
	1.00 to 10.00 kHz	0.25%
	Waveform	5 V p-p squarewave, -0.1 V offset
RTDs and Thermocouples
Measure accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.8°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
	XK	0.6°C
	BP	1.2°C
Source accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	Accuracy stated for 4-wire measurement.
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.4°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, B, R, S: 1°C
	XK	0.6°C
	BP	1.2°C
Specifications
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
Ramp functions	Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop power function	Voltage	24 V
	Accuracy	10%
	Maximum current	22 mA, short circuit protected
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
Step functions	Steps	25% of range, 100% of range
Environmental Specifications
Operating temperature	-10°C to +55°C
Storage temperature	-20°C to 71°C
Operating altitude	3000 m
Safety Specifications
Agency approvals	EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992
Mechanical and General Specifications
Size	130 x 236 x 61 mm
Weight	0.65 kg
Batteries	4 AA alkaline batteries
Battery replacement	Separate battery compartment, accessable without breaking calibration seal
Side port connections	Pressure module connector, also used for remote real-time programming

FLUKE FLUKE-725/APAC/EMEA Multifunction Process Calibrator (Measure and simulate current, voltage, temperature, pressure)

Specifications: Fluke 725 Multifunction Process Calibrator
