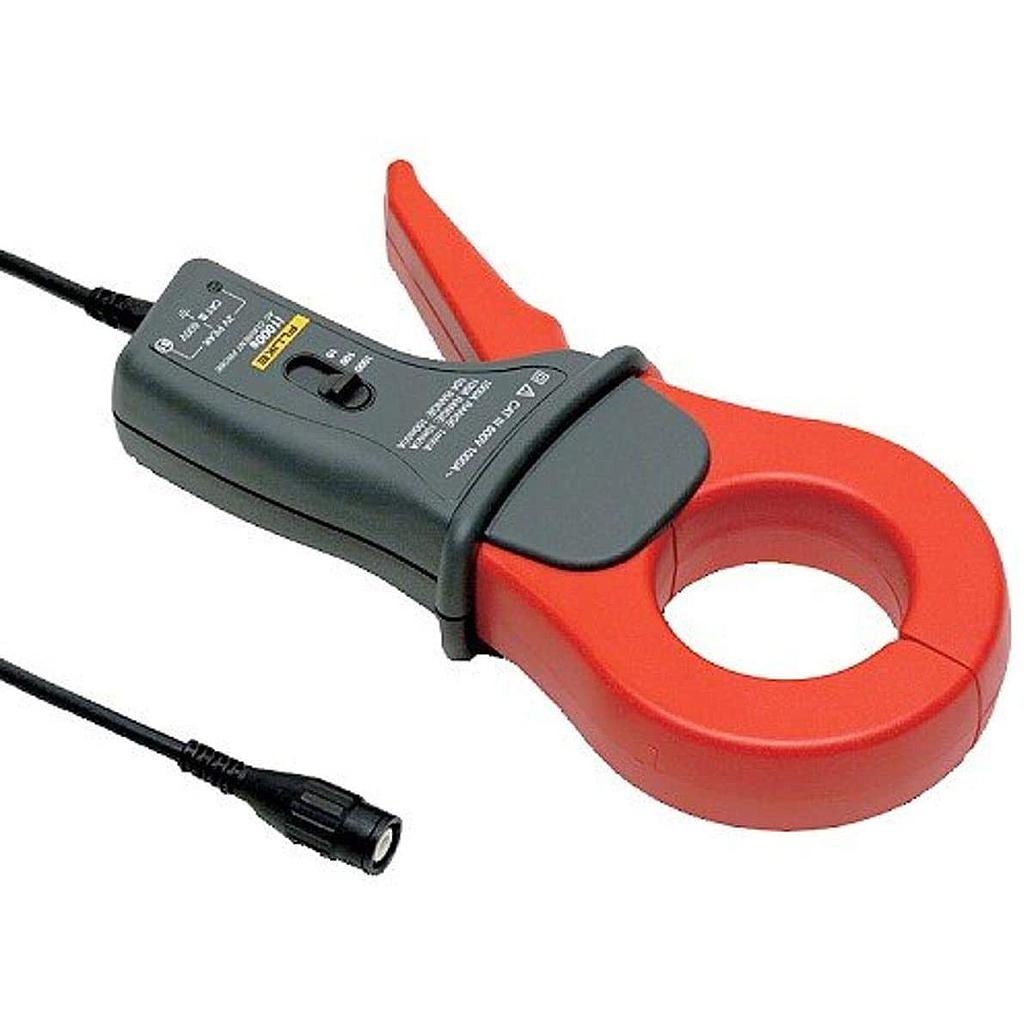

The Fluke i1000s is a clamp-on AC current probe designed to expand oscilloscope applications in industrial and power environments. Ideal for measuring distorted current waveforms and harmonics.
Allows accurate measurement of currents from 100 mA to 1000 A rms, 5 Hz to 100 kHz without breaking the circuit
Basic accuracy : 1% reading + 1 A (48-65 Hz)
Useable frequency : 5 Hz - 100 kHz
Nominal current range
10 A
100 A
1000 A
Continuous current range
0.1 A - 10 A
0.1 A - 100 A
1 A - 1000 A
Maximum non-descructive current:2000 A
Lowest measureable current:0.1
Basic accuracy:1% + 1 A (48-65 Hz) (% reading + floorspec)
Useable frequency:5 Hz - 100 kHz
Output level(s)
100 mv/A
10 mv/A
1 mv/A
Safety Specifications
Safety:CAT III, 600 V CAT IV, 300V
Maximum voltage:600 V AC
Mechanical and General Specifications
Maximum conductor diameter:54 mm
Output cable length:1.6 m
BNC adapter:Yes
