Basic Parameters *
Display: 2.8 Inches / PPI:320*240
USB Charging: 5V/1A
Lithium Battery Capacity: 1000mAh
Size: 99x68.3x19.5mm
Weight: 104g

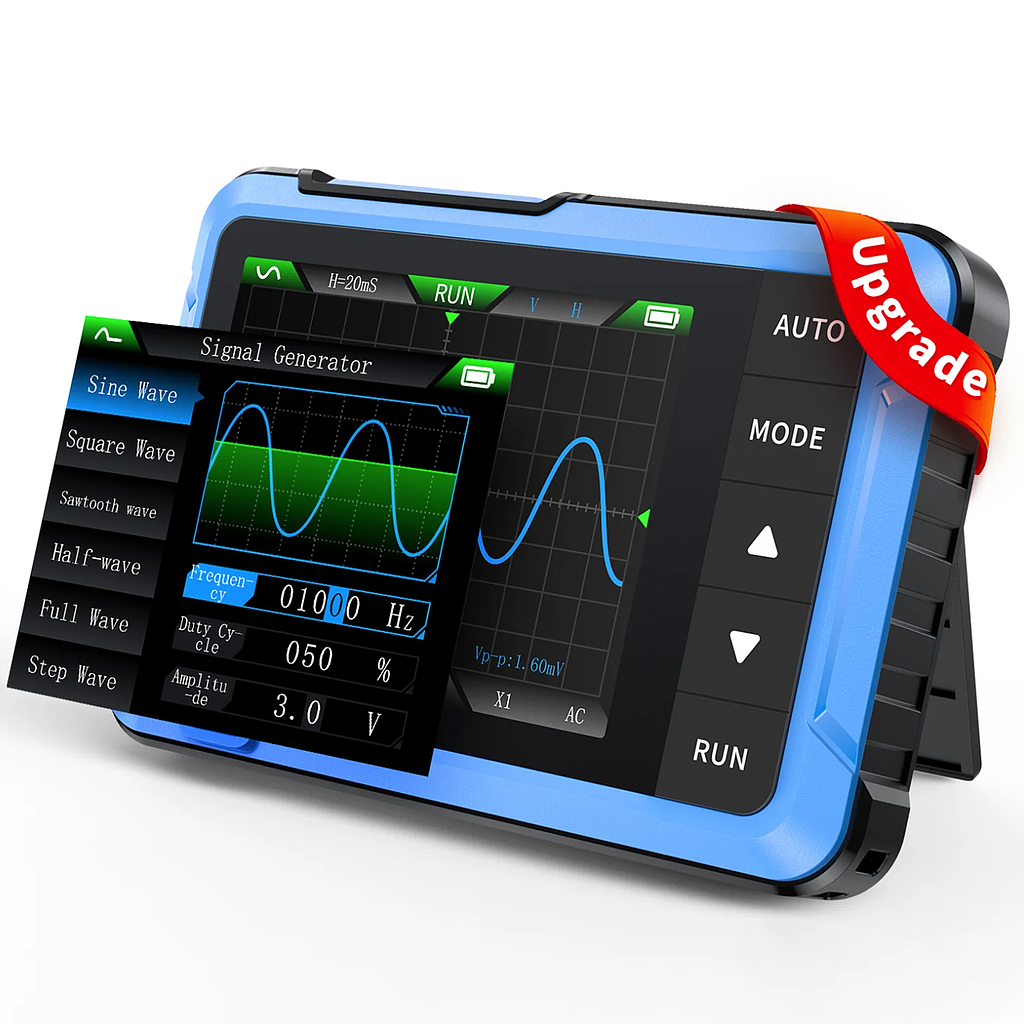

* Mini Oscilloscope *
Channel: 1
Sampling Rate: 48MS/s
Bandwidth: 10MHz
Vertical Sensitivity: 10mV/Div-20V/Div (Progress according to the 1-2-5 way)
Time Base Range: 50ns/Div-20s/Div (Progress according to the 1-2-5 way)
Voltage Range
X1: ±40V (Vpp:80V)
X10: ±400V (Vpp:800V)
Trigger Mode: Auto / Normal / Single
Trigger Edge: Rising edge / Falling edge
Coupling: AC/DC
Signal Generator *
Frequency: 0-50KHz
Duty Cycle: 0-100% (rectangular and sawtooth waves)
Amplitude: 0.1-3.0V
Waveforms: Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave.
