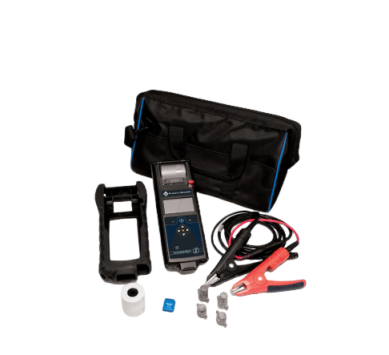

CELLTRON Genstart battery tester kit includes: protective rubber boot, 10ft cable set with Kelvin clamps, lead stud adapter set, thermal paper roll, 2GB SD memory card, carrying case

DC Voltage: 0.9 - 32.0 Volts DC +/- 0.03VDC

Measured Temperature: -20 to 200°F 1.0%+/-5° (-28 to 93.3°C)

Operating Temperature: 32 to 120°F (0 to 49°C)

Dimensions: 9.5in x 4in x 2.5in (242mm x 102mm x 64mm)

Weight: 1 lb (427 g)

Applications:

+ Generator Starter Battery

+ Automotive Battery

+ 12 & 24 Volt Battery Pack

+ Test each individual 12V battery that are in series, parallel, or series/parallel configurations

Battery Chemistries: Optima Redtop®; Flooded Lead Acid; AGM Spiral; AGM Flat

Rating System / Range: Uses conductance based technology to display test results in the specified battery rating.

+ CCA / 100 – 3000

+ JIS / By JIS number

+ DIN / 100 – 1000

+ SAE / 100 – 3000

+ IEC / 100 – 1000

+ EN / 100 – 3000

Display: 128 x 64 pixel graphic, backlit display

Test Leads: 10ft HD Dual Connector Kelvin Clamps

Languages: Englis, French-Canadia, Spanish, Portugues, Polis, Italian, Dutch, German

Housing Material: ABS plastic
