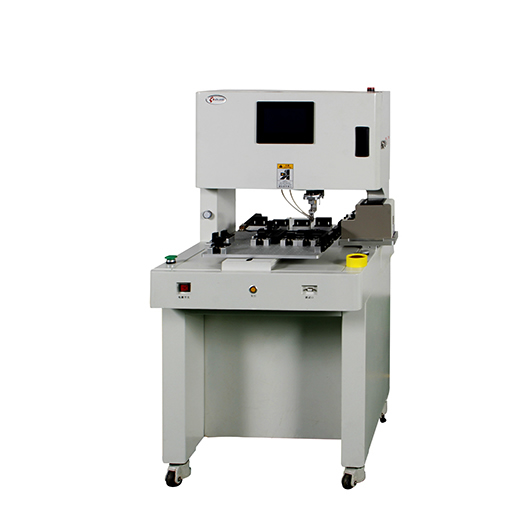

Garland ATS-400I automatic locking screw machine

Number of operators: 1 person or no one

model: Floor-standing integrated

Dimensions: L*W*H——785*670*1325(mm)

weight: 170KG

Operating area: Protective

Reclaiming method: Vacuum suction

Number of electric batches: 1PCS

Number of feeders: 1PCS

Number of work stations: 2PCS

Fixture: custom made

Gas source: 0.4-0.8MPa, oil-free, dry

power supply: 220V 50HZ

power: 300W

Applicable screw specifications: Below M3

effectiveness: 1.0s-1.2s/piece

NPL ratio: 1‰ or less (in number of screws)

speed: X, Y, Z-800, 800, 800mm/s

Precision: +/-0.02mm

Applicable product size: L*W*H--120*200*20(mm)

Alarm item: Sliding teeth, leaking, floating height (optional)

Electric batch torque: Adjustable

Operation interface: touch screen

Coordinate storage: 60

Number of locks: 290

control unit: 4 axis motion controller

power: Stepper motor / servo motor

Transmission method: Precision timing belt / roller screw

Operating mode: Front/front, front/back

Model switching time: Within 30 minutes (take 100 pieces of screws as an example)

Data communication: USB port export (optional)

annex: Coordinate adjustment handle

-This machine is a floor-standing one-piece machine. It is compact and can be placed flexibly on the production line.

It is suitable for screws below M3. For the tooth type, the screw length to diameter ratio is not strictly required.

Working mode is single player mode and unmanned mode, free to choose according to needs.

-Efficient: 1.0s-1.2s/piece

-can completely replace the manual lock screw station,

-cost - effective,

-versatile,

-can store a variety of products, screw coordinates are

-stable and reliable

-Easy to learn and use
