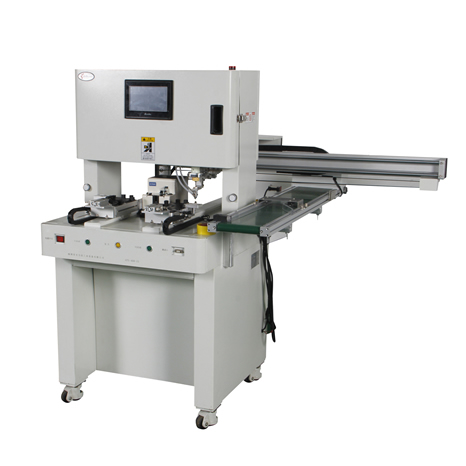

Garland ATS-420II Automatic locking screw machine

Number of operators: unmanned

Model: Floor-standing integrated

Dimensions: L*W*H——785*1280*1325(mm)

Weight: 210KG

Operating area: Protective

Reclaiming method: Vacuum suction

Number of electric batches: 1PCS

Number of feeders: 1PCS

Number of work stations: 2PCS

Fixture: custom made

Gas source: 0.4-0.8MPa, oil-free, dry

Power supply: 220V 50HZ

Power: 320W

Applicable screw specifications: Below M3

effectiveness: 1.0s-1.2s/piece

NPL ratio: 1‰ or less (in number of screws)

speed: X, Y, Z-800, 800, 800mm/s

Precision: +/-0.02mm

Applicable product size: L*W*H--120*200*20(mm)

Alarm item: Sliding teeth, leaking, floating height (optional)

Electric batch torque: Adjustable

Operation interface: touch screen

Coordinate storage: 60

Number of locks: 24

Control unit: 4+1 axis motion controller

Power: Stepper motor / servo motor

Transmission method: Precision timing belt / roller screw

Operating mode: Unmanned automatic, front/front, front/rear arm unloading

Model switching time: Within 20 minutes

Data communication: USB port export (optional)

Annex: Coordinate adjustment handle

-The screw machine is automatically loaded and unloaded by the standard machine,

and the robot arm is loaded and unloaded to completely realize unmanned operation.

The single Z-axis double platform lock screw mode enables uninterrupted operation of the machine.

The small short line of the machine and the robot arm and the double head machine are easy to move as a whole.

Easy to adjust, easy to learn and use.

-Single lock pay Z axis, double working platform

-appearance multiple arc design, beautiful and generous

-versatility

-can store a variety of products screw coordinates

-automatic loading and unloading function

-Easy to learn and use
