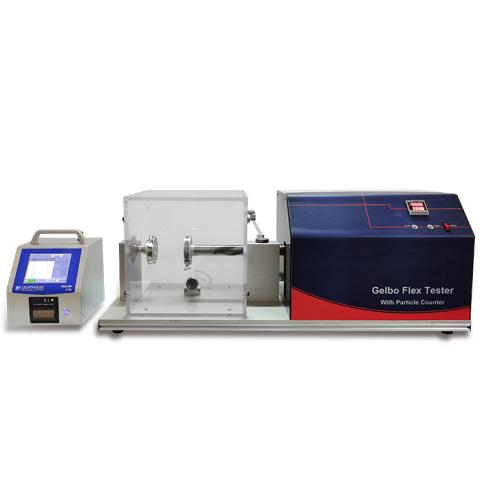

Test the coefficient of linting and other particle s generation of surgical drapes, gowns and clean air suits for patients, clinical staff and equipment in the drying state.

Diameter of the round plate: Φ82.8㎜

Reciprocating frequency: 60times/ min

Rotating Angle: 180°/time (clockwise & anticlockwise alternating)

Max start distance of 2 round plates: (188±2)㎜

Straight stroke of the dynamic plates: (120±2)㎜

Size of anti-static electricity test chamber: 300mm×300mm×300mm

Diameter of air collector sampling end: (40±5)㎜

Laser dust particle counter:

Measure range of particle size: 0.3μm～25μm
8 Test channel: 0.3μm, 0.5μm, 0.7μm, 1.0μm, 2.0μm, 3.0μm, 5.0μm, 10.0μm
Air flow speed: (28.3±1.4)L/min
Sampling period: 1~59min59s optional
Print function: Insert printer, can print counting result
Max collector concentration: 35,000 particles/L

Power supply: AC 220V 50Hz
