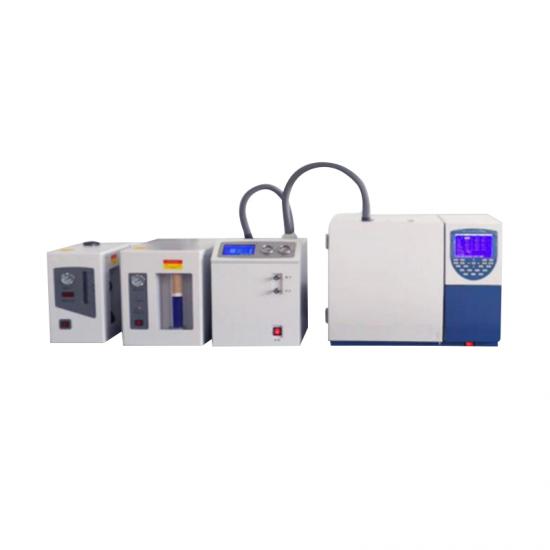

Application: The gas chromatograph is specially designed for the detection of residual amount of ethylene oxide and epichlorohydrin in medical instruments.

Standard: GB15980,YY 0469, GB/T32610, GB 2626, GB 19083

Various injectors are available: Packed column injector, split/split capillary injector

Column oven:

Temperature range: Room temperature+5~420℃;

Temperature setting: 1℃, The program sets the heating rate to 0.1 degree;

Maximum heating rate: 40℃/ min

Temperature stability: When the ambient temperature changes 1°C, 0.01°C.

Temperature Programming: Order program temperature can be adjusted

Detector index Flame ionization detector (FID):

Manipulation of the temperature: 400°C;

LOD: ≤5×10-12g/s (Hexadecane);

Drifting: ≤5×10-13A/30min;

Noise: ≤2×10-13A;

Dynamic linear range: ≥107

Dimension: 465*460*550mm

Mainframe weight: 40kg

Input power: AC220V 50HZ; Max Power: 2500w
