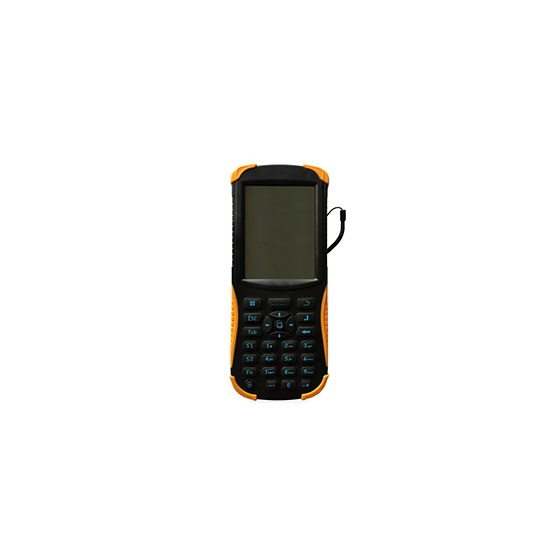

GFUVE GF2000 Android Multifunctional Portable Industrial PDA

BAISC PARAMETERS

CPU: ARM11 1G Hz

Memory: KE44A-26BN/4GB, EDE2116AEBG-8E-F/1G

Operating system: Android 4.0

Communication: USB2.0, 38K Infrared (Can transfer as far as 12m.)

Display screen: 3.5-inch touch screen, 640x480 dots

Keyboard: 25 Silicone keyboard

Battery: Rechargeable battery 3000mA/3.7V

Expansion slots: MICRO SD card

SIM card slot: 2 slots

Audio: High-volume speakers

Camera: 300 pixels, LE D flashlight

GPS: Accuracy of 3 m, UBLOX NEO-6M GPS-six

Drop Specifications: 6 surfaces can withstand drops from 1.5 meters to concrete impact

Scroll ~ specifications: 1,000 times 0.5 meters, six rolling contact surface

Sealed environment: IP64

Wireless communications (option): GSM/GPRS/EDGE: GSM850/EGSM900/DCS1800/PCS1900

WCDMA/HSDPA:2100M(band I), 1900M(band II), 850M(band V) CDMA2000

Wireless Module (Option): IRDA, RF, HF, UHF

E-Tag RF13.56mhz (option)

Supported Standards: EPC Gen 1 (0kind, 1kind) and Gen 2

Low working frequency: 125kHz

Tabdomining: EM 125KHz

Working frequency of high frequency:: 13.56MHz

protocol standard: ISO14443A/B, IS015693,

Nominal read range: 5.0cm ~ 10cm

Rated write scope: 5.0cm ~ 10cm

Range: From the front of the device from the 70° angle (according to the band)

Barcode reader (option)

Optical Resolution: 0.005 inches minimum bar width

Rotation angle: Vertical deviation angle +/-30°

Tilt angle: The angle from normal +/-65°

Offset visual tolerance: Deviation from the normal angle of +/-60°

Ambient light: Sunlight: 8,000 ft. candles (86,112 Lux)

Artificial light: 450ft.candles(4,844Lux)

Scanning frequency: 50 scans per second (+/-6) times (two-way)

Scan angle: 46.5° (standard)

Laser power: 1.0 ma (standard)

Reading accuracy: Laser greater than 6 mil

Laser safety: IEC2/ FDA II grade, standards compliance IEC60825-1/ EN60825-1

Camera: Supported for 2D barcode Read

MECHANICAL PARAMETERS

Dimension (L×W×H) (mm): 200×70×27

Weight: Includes standard battery 320 g

ENVIRONMENTAL CONDITIONS

Working temperature: -20°C ~ 50°C

Storage temperature: -25°C ~ 70°C

Humidity: 5%RH-95%RH (no condensation)
