ELECTRICAL PARAMETERS
Ratio: 2500: 1, 2000:1 or 1000:1 (customized)
Accuracy class: 0.2%, 0.5%
Phase shift: <10'
Primary current: 0 - 10A AC
Secondary current: 0 - 10mA AC (customized)
Secondary voltage: 0.25V, 0.5V AC
Max. Cont. Input current: 20A
Load capacity: ≤4Ω
Over voltage category: CAT III 600V
Output signal (AC current): From 0 to 10mA AC at nominal input current
Output signal (AC voltage): From 0 to 0.5V AC at nominal input current
Frequency range: 40Hz-2000Hz
Dielectric strength: 3KV 50Hz/60Hz at 1minute
Temperature range: '-20°C to +55°C
Output: 2.5 meter cable with D01 connector
Max. voltage not insulated conductors: 720 V
Standard: EN 61010-1, EN 61010-2-032, IEC60044-1

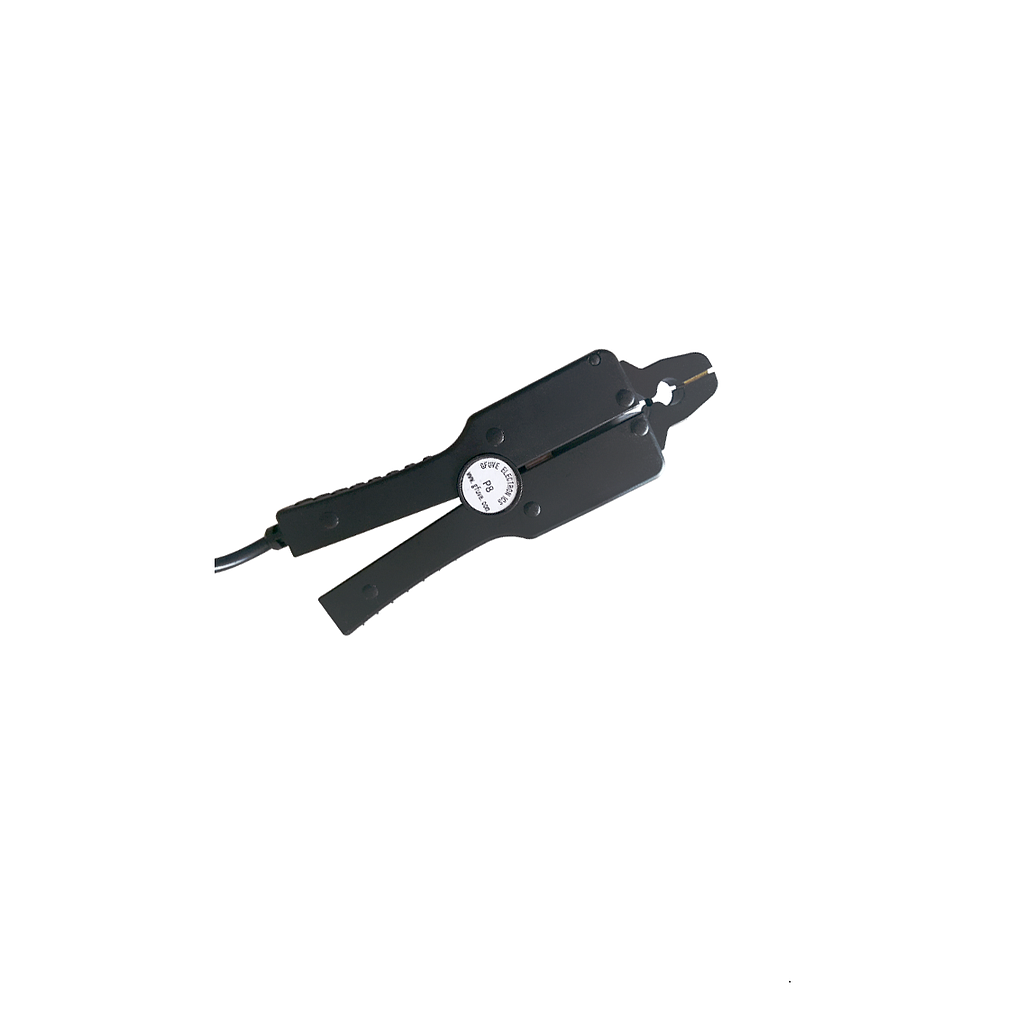

Installation: clamp type
Output mode: lead output(2.5m)
MECHANICAL PARAMETERS
Dimensions (L x W x H) (mm): 42× 139 × 20
Weight (g): 180
Holding wire diameter (mm): φ8
Max. jaw opening (mm): 8
Color: Black
Material: PC+ABS+Polycarbonate, UL94 V0
