ELECTRICAL PARAMETERS
Ratio: 1000: 1 or 2000:1 (customized)
Accuracy class: 0.2%, 0.5%, 1%
Primary current: 0 - 3000A AC
Secondary current: 0 - 5A AC (customized)
Max. Cont. Input current: 3600A
Over voltage category: CAT III 600 V
Output signal (AC current): 500mA,1A,5A AC at nominal input current
Output signal (AC voltage): 333mV,500mV,1V,5V AC at nominal input current
Frequency range: 40Hz-2000Hz
Dielectric strength: 3KV 50Hz/60Hz at 1 minute
Temperature range: -20°C to +55°C
Output: 2.5 meter cable with D01 connector
Max. voltage not insulated conductors: 600 V
Standard: EN 61010-1, EN 61010-2-032, IEC60044-1

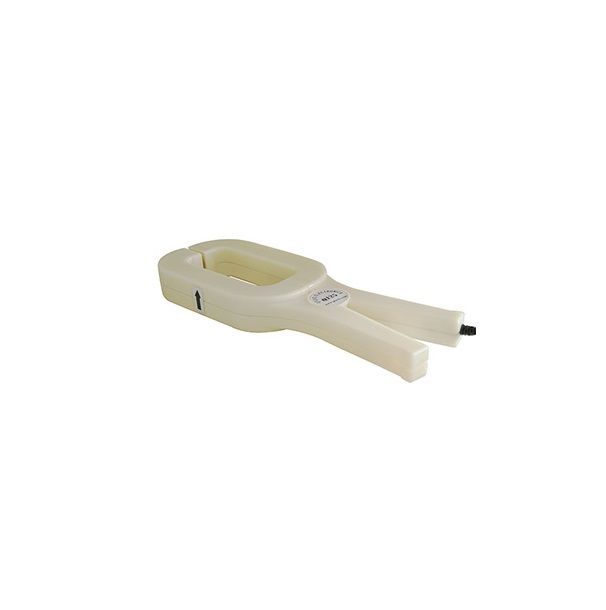

Installation: Clamp type
Output mode: Lead output(2.5m)
MECHANICAL PARAMETERS
Dimensions (L x W x H) (mm): 116 x 327 x 35
Weight (g): 1200
Holding wire diameter (mm): φ120 x 50
Max. jaw opening (mm): 50
Jaw Color: White
Material: PC+ABS+Polycarbonate, UL94 V0
