Electrical parameters
Ratio: 1000: 1 or 2000:1 (customized)
Accuracy class: 0.2%, 0.5%
Primary current: 0 - 10A AC
Secondary current: 0 - 10mA AC (customized)
Max. Cont. Input current: 12 A
Load capacity: ≤4Ω
Over voltage category: CAT III 600V
Output signal (AC current): From 0 to 10mA AC at nominal input current
Output signal (AC voltage): From 0 to 1V AC at nominal input current
Frequency range: 40Hz-2000Hz
Dielectric strength: 3KV 50Hz/60Hz at 1minute
Temperature range: -20°C to +55°C
Output: 2.5 meter cable with D01 connector
Max. voltage not insulated conductors: 600 V
Standard: EN 61010-1, EN 61010-2-032, IEC60044-1

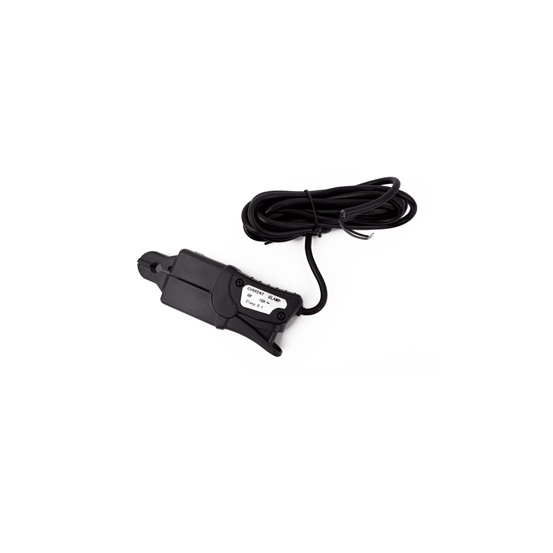

Installation: Clamp type
Output mode: Lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm): 42.6× 122.5 × 23
Weight (g): 225
Holding wire diameter (mm): φ8
Max. jaw opening (mm): 8
Color: Gray
Material: PC+ABS+Polycarbonate, UL94 V0
