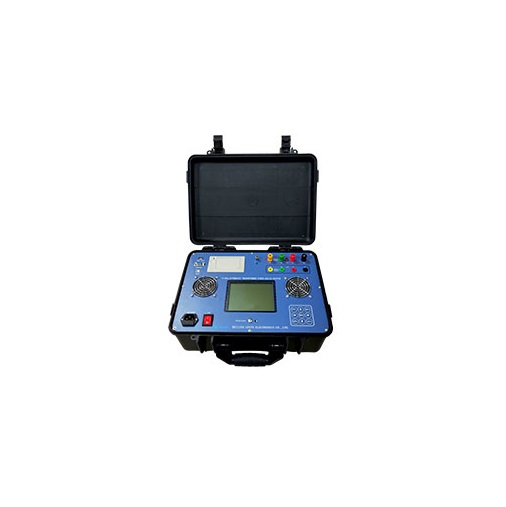

GFUVE T-203 Automatic Transformer Turns Ratio Tester

ELECTRICAL PARAMETERS

Power supply: Single phase AC 220V±10% or 110V±10%, 50/60HzAC

Test power: AC160V/10V

Data storage: 100 group

Display precision: 5 Bits, resolution ratio: 0.0001

160V testing voltage:

Range1: 0.9-500：0.1%±2words

Range2: 500-3000：0.2%±2words

Range3: 3000-10000：0.5%±2words;

10V testing voltage:

Ratio: 0.9-200

Accuracy: 0.3%±2words

LCD: 5.7″black and white LCD display

Communication: RS232 and USB communication interface

Printer: internal installed 58mm wide thermal printer

Standard: IEC61010-1, IEC61326-1

MECHANICAL PARAMETERS

Dimension (L×W×H) (mm): 415x320x168

Weight (kg): 7

ENVIRONMENTAL CONDITIONS

Operating temperature: -10°C ~ 50°C

Storage temperature: -20°C ~ 70°C

Relative humidity: ≤85%RH
